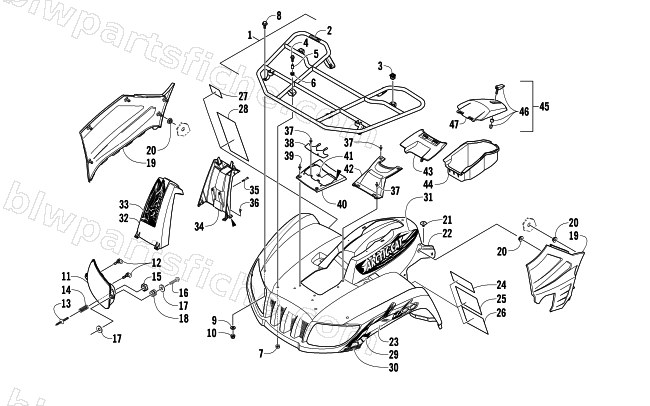

2013 Arctic Cat 700 MUD PRO — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2013 700 MUD PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-643 | RACK,FRONT-ASSEMBLY (W/O FENCE) | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 11 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 12 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 13 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 14 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 15 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 16 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 19 | 2406-300 | PANEL,SIDE-RH (A-BODY) | 1 | $66.95 | |
| 19 | 2406-419 | PANEL,SIDE-LH (650H1) | 1 | $66.95 | |
| 20 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 21 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 22 | 2516-132 | FENDER,ASSY-FR-APPLE GREEN METALLIC | 1 | $1,112.95 | |
| 22 | 5506-016 | FENDER,FRONT-ARC GRN MET-ASSY(FIS) | 1 | $1,450.95 | |
| 23 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 23 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 24 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 25 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 26 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 27 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 28 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 29 | 3411-096 | DECAL,FENDER FRONT-RH-GM (MP 700 I) | 1 | $23.39 | |
| 29 | 3411-097 | DECAL,FENDER FRONT-LH-GM (MP 700 I) | 1 | $23.39 | |
| 29 | 3411-098 | DECAL,FENDER-FRONT-RH-AGM (MP 700 I) | 1 | $23.39 | |
| 29 | 3411-099 | DECAL,FENDER-FRONT-LH-AGM (MP 700 I) | 1 | $23.39 | |
| 30 | 3411-264 | DECAL,EFI | 1 | $12.35 | |
| 31 | 3411-102 | DECAL,SIDE-GM-RH (MP 700 I) | 1 | $24.77 | |
| 31 | 3411-103 | DECAL,SIDE-GM-LH (MP 700 I) | 1 | $24.77 | |
| 31 | 3411-104 | DECAL,SIDE-RH-AGM (MP 700) | 1 | $100.95 | |
| 31 | 3411-105 | DECAL,SIDE-LH-AGM (MP 700) | 1 | $100.95 | |
| 32 | 4506-301 | COVER,SNORKEL FRONT-M.BLACK-PTD | 1 | $140.95 | |
| 33 | 3411-090 | DECAL,SNORKEL-GM (MP 700I) | 1 | $17.87 | |
| 33 | 3411-092 | DECAL,SNORKEL-AGM (MP 700) | 1 | $19.25 | |
| 34 | 4506-306 | COVER,SNORKEL REAR-M.BLACK-PTD | 1 | $74.95 | |
| 35 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 36 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 37 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 38 | 2416-100 | SHIELD,SPLASH | 1 | $10.97 | |
| 39 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 40 | 2516-170 | COVER,RADIATOR ACCESS-ROUTED | 1 | $33.95 | |
| 41 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 42 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 43 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 44 | 1406-573 | BOX,STORAGE | 1 | $26.95 | |
| 45 | 2506-234 | LID,STORAGE BOX-W/LATCH | 1 | $32.95 | |
| 46 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 47 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 |
