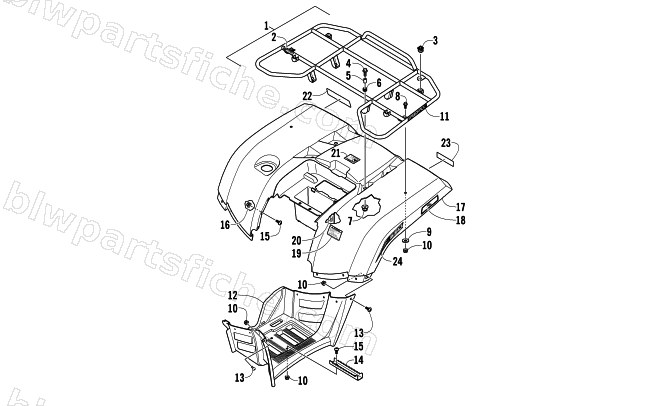

2013 Arctic Cat 550 LIMITED — REAR RACK, BODY PANEL, AND FOOTWELL ASSEMBLIES
2013 550 LIMITED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-124 | RACK,REAR W/FENCE-ASSEMBLY | 1 | $405.95 | |
| 2 | 0411-648 | DECAL,WARNING-REAR RACK (200 LB.) | 1 | $3.30 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 11 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 12 | 2406-280 | FOOTWELL,RH | 1 | $105.95 | |
| 12 | 2406-281 | FOOTWELL,LH | 1 | $101.95 | |
| 13 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 14 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 15 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 16 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 17 | 2516-960 | FENDER,REAR-RTD-ADV TIM CAMO-ASSY | 1 | $1,684.95 | |
| 17 | 2516-688 | FENDER,REAR-RTD-M. BLACK-ASSY | 1 | $1,079.95 | |
| 18 | 1411-598 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 18 | 1411-599 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 19 | 2411-143 | DECAL,TIRE PRESSURE (FIS) | 1 | $3.02 | |
| 20 | 0412-351 | HEAT SHIELD,BATTERY BOX | 1 | $4.40 | |
| 21 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 22 | 3411-326 | DECAL,GRAPHIC-REAR(BLACK) (MATTE) | 1 | $17.87 | |
| 22 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 23 | 3411-245 | DECAL,LIMITED (FLAT) | 1 | $4.95 | |
| 23 | 3411-061 | DECAL,LIMITED (LIGHT) | 1 | $10.97 | |
| 24 | 3411-248 | DECAL,REAR-550-RH/LH (FLAT) | 1 | $24.77 | |
| 24 | 3411-044 | DECAL,REAR--550 i LTD DR-RH | 1 | $29.95 | |
| 24 | 3411-045 | DECAL,REAR-550 i LTD DR-LH | 1 | $24.77 | |
| 24 | 3411-042 | DECAL,REAR-550 i LTD SB-RH | 1 | $17.87 | |
| 24 | 3411-043 | DECAL,REAR-550 i LTD SB-LH | 1 | $29.95 |
