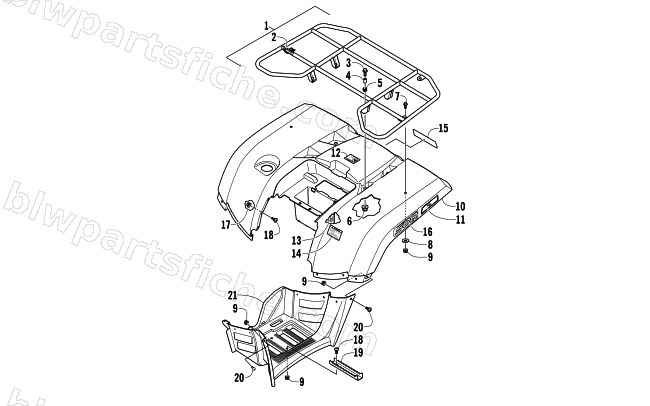

2013 Arctic Cat 500 — REAR RACK, BODY PANEL, AND FOOTWELL ASSEMBLIES
2013 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-062 | RACK,REAR-ASSY (B-BODY VP) | 1 | $292.95 | |
| 2 | 0411-648 | DECAL,WARNING-REAR RACK (200 LB.) | 1 | $3.30 | |
| 3 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 4 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 5 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 6 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 7 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 8 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 9 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 10 | 2516-958 | FENDER,REAR-RTD-MARSH-ASSY | 1 | $521.95 | |
| 10 | 2516-956 | FENDER,REAR-RTD-P.RED-ASSY | 1 | $413.95 | |
| 11 | 1411-598 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 11 | 1411-599 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 12 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 13 | 0412-351 | HEAT SHIELD,BATTERY BOX | 1 | $4.40 | |
| 14 | 2411-143 | DECAL,TIRE PRESSURE (FIS) | 1 | $3.02 | |
| 15 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 16 | 2411-995 | DECAL,REAR-500 EFI (RH/LH) | 1 | $6.47 | |
| 17 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 18 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 19 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 20 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 21 | 2406-280 | FOOTWELL,RH | 1 | $105.95 | |
| 21 | 2516-385 | R/B 8506-753 | 1 | $95.95 |
