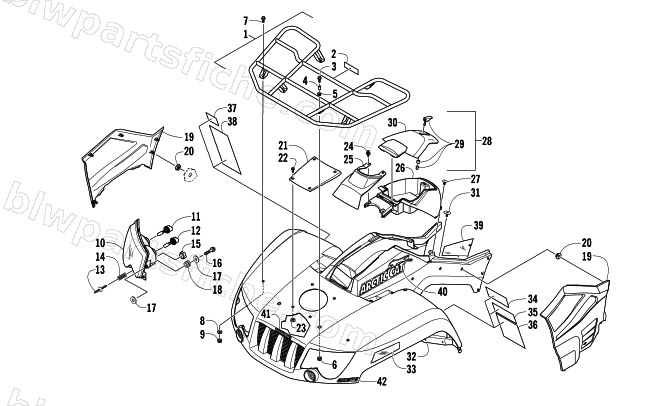

FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2013 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-056 | RACK,FRONT-ASSY (B-BODY VP) | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 4 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 5 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 6 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 7 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 8 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 9 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 10 | 0609-852 | HEADLIGHT-ASSY-RH | 1 | $185.95 | |
| 10 | 0609-853 | HEADLIGHT-ASSY-LH | 1 | $185.95 | |
| 11 | 0409-073 | BULB,HEADLIGHT(899) | 1 | $33.95 | |
| 12 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 13 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 14 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 15 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 16 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 19 | 2406-302 | PANEL,SIDE-RH | 1 | $66.95 | |
| 19 | 2416-133 | PANEL,SIDE-LH (450) | 1 | $50.95 | |
| 20 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 21 | 2416-170 | COVER,RADIATOR-MARSH GREEN | 1 | $20.63 | |
| 21 | 2416-134 | COVER,RADIATOR-RED | 1 | $20.63 | |
| 22 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 23 | 0423-997 | NUT,T W/TEETH-M6 | 1 | $0.68 | |
| 24 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 25 | 1406-972 | COVER,STEERING POST-BLACK | 1 | $20.63 | |
| 26 | 2416-240 | BOX,STORAGE-BLACK | 1 | $107.95 | |
| 27 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 28 | 2506-235 | COVER,STORAGE BOX-W/LATCH | 1 | $58.95 | |
| 29 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 30 | 1406-862 | COVER,STORAGE BOX | 1 | $57.95 | |
| 31 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 32 | 4506-393 | FENDER,FRONT-MARSH-ASSY | 1 | $566.95 | |
| 32 | 4506-392 | FENDER,FRONT-RED-ASSY | 1 | $586.95 | |
| 33 | 1411-078 | REFLECTOR,FRONT-RH | 1 | $5.37 | |
| 33 | 1411-079 | REFLECTOR,FRONT-LH | 1 | $5.37 | |
| 34 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 35 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 36 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 37 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 38 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 39 | 0412-394 | SHIELD,HEAT | 1 | $3.16 | |
| 40 | 3411-034 | DECAL,SIDE-RH (A,B,CR BODY) | 1 | $42.95 | |
| 40 | 3411-035 | DECAL,SIDE-LH (A,B,CR BODY) | 1 | $42.95 | |
| 41 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 42 | 3411-264 | DECAL,EFI | 1 | $12.35 |
