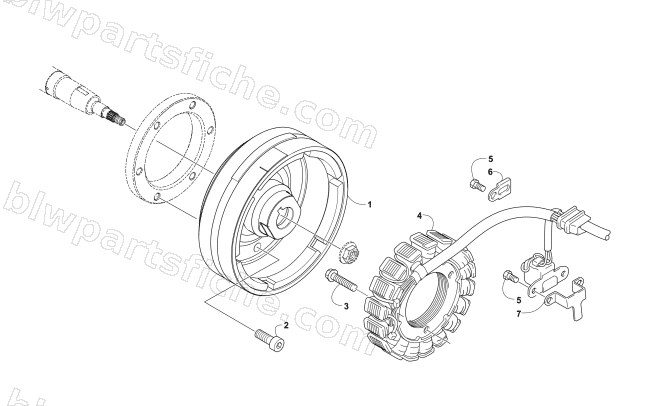

2013 Arctic Cat 500 XT — MAGNETO ASSEMBLY
2013 500 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0802-057 | FLYWHEEL COMP | 1 | $220.95 | |
| 2 | 0826-120 | SCREW,HSH-M8X1.25X20 | 1 | $3.02 | |
| 3 | 3305-945 | BOLT FLANGE SH 6X32 | 1 | $1.50 | |
| 4 | 3323-200 | STATOR,IGNITION | 1 | $205.95 | |
| 5 | 3303-308 | BOLT HEX 5*12 | 1 | $0.81 | |
| 6 | 0802-003 | CLAMP, MAGNETO | 1 | $3.44 | |
| 7 | 0802-004 | CLAMP, MAGNETO | 1 | $3.44 |
