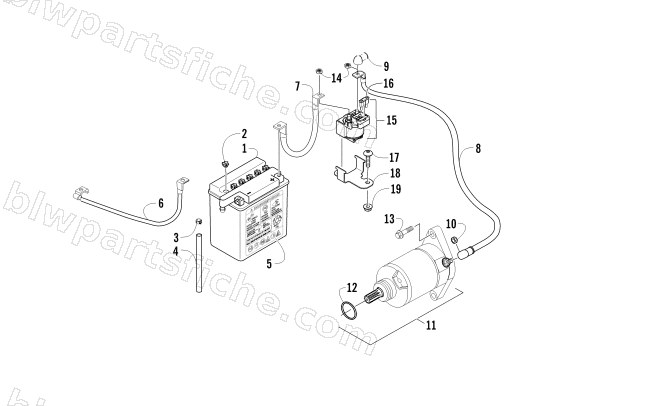

BATTERY AND STARTER ASSEMBLY
2013 400 CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 2 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 3 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 4 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 5 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 6 | 3313-525 | CABLE,BATTERY/ENGINE | 1 | $37.95 | |
| 7 | 3313-526 | CABLE,BATTERY/SOLENOID | 1 | $16.49 | |
| 8 | 3313-527 | CABLE,SOLENOID/STARTER | 1 | $26.95 | |
| 10 | 3304-011 | NUT WASH 6MM | 1 | $0.81 | |
| 11 | 3305-954 | MOTOR UNIT STARTER | 1 | $324.95 | |
| 12 | 3304-104 | O-RING 24.4*3.1 | 1 | $1.95 | |
| 13 | 3305-946 | BOLT FLANGE SH 6*28 | 1 | $1.50 | |
| 14 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 15 | 3313-464 | RELAY,STARTER | 1 | $47.95 | |
| 16 | 3304-212 | BLADE FUSE 30A | 1 | $4.95 | |
| 17 | 3305-703 | SCREW SPECIAL 6*20 | 1 | $1.78 | |
| 18 | 3313-467 | BRACKET,MOUNTING-SOLENOID | 1 | $4.54 | |
| 19 | 3304-431 | NUT LOCK | 1 | $1.23 |
