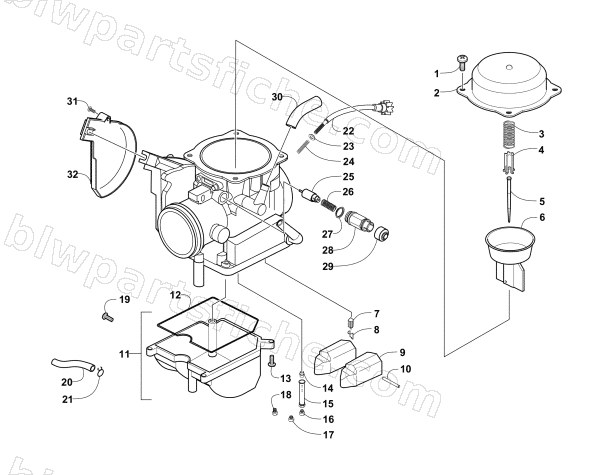

CARBURETOR ASSEMBLY
2013 300 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3306-245 | CARBURETOR ASSY (2011 300 UTY/DVX) | 1 | $806.95 | |
| 1 | 5507-002 | SCREW, TOP COVER | 1 | $0.40 | |
| 2 | 5507-051 | COVER, TOP | 1 | $64.95 | |
| 3 | 3305-432 | COIL SPRING | 1 | $3.16 | |
| 4 | 5507-121 | SPRING SEAT | 1 | $5.37 | |
| 5 | 3305-540 | JET NEEDLE COMP | 1 | $23.39 | |
| 6 | 3305-711 | VACUUM PISTON COMP | 1 | $112.95 | |
| 7 | 5507-038 | FLOAT VALVE SET | 1 | $33.95 | |
| 8 | 3304-249 | SPECIAL CLIP | 1 | $4.13 | |
| 9 | 5507-039 | FLOAT SET | 1 | $37.95 | |
| 10 | 3304-451 | ARM PIN | 1 | $2.33 | |
| 11 | 3306-694 | FLOAT CHAMBER ASSY | 1 | $220.95 | |
| 12 | 3305-429 | O-RING | 1 | $3.44 | |
| 13 | 5507-017 | SCREW | 1 | $7.30 | |
| 14 | 5507-245 | NEEDLE JET | 1 | $47.95 | |
| 15 | 5507-047 | HOLDER, NEEDLE- JET | 1 | $26.95 | |
| 16 | 3305-434 | MAIN JET #112 | 1 | $13.73 | |
| 17 | 5507-246 | JET,SLOW #38 | 1 | $20.63 | |
| 18 | 5507-250 | MAIN JET #60 | 1 | $13.95 | |
| 19 | 5507-050 | SCREW, DRAIN | 1 | $3.02 | |
| 20 | 3306-882 | RUBBER PIPE | 1 | $16.49 | |
| 21 | 5507-161 | R/B 3304-474 | 1 | $1.95 | |
| 22 | 3305-437 | STOP SCREW | 1 | $16.49 | |
| 23 | 5507-028 | WASHER | 1 | $0.40 | |
| 24 | 5507-029 | SPRING | 1 | $5.92 | |
| 25 | 5507-022 | STARTER VALVE | 1 | $37.95 | |
| 26 | 5507-023 | SPRING | 1 | $3.44 | |
| 27 | 5507-024 | O-RING | 1 | $3.02 | |
| 28 | 5507-025 | CAP | 1 | $6.47 | |
| 29 | 5507-026 | RUBBER CAP | 1 | $3.44 | |
| 30 | 0410-056 | HOSE,VENT-CARBURATOR | 1 | $16.49 | |
| 31 | 5507-037 | SCREW(TOP COVER) | 1 | $0.95 | |
| 32 | 3305-441 | COVER | 1 | $26.95 |
