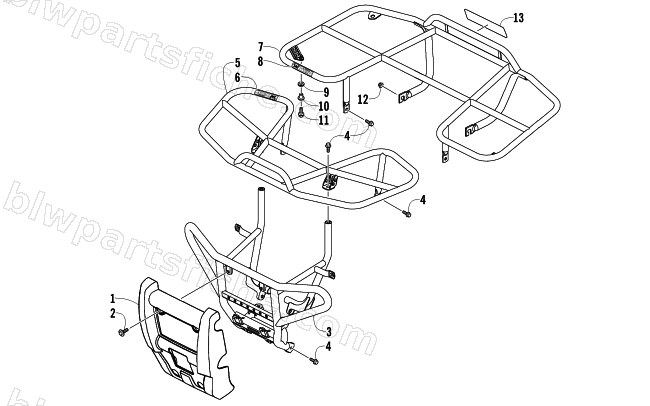

2013 Arctic Cat 300 2X4 UTILITY — FRONT BUMPER, FRONT RACK, AND REAR RACK ASSEMBLY
2013 300 2X4 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-758 | BUMPER FRONT (FASCIA) | 1 | $37.95 | |
| 2 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 3 | 3304-001 | PIPE COMP FR BUMPER | 1 | $309.95 | |
| 4 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 5 | 3303-988 | FRONT CARRIER LUGGAGE | 1 | $227.95 | |
| 6 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 7 | 3305-464 | RR CARRIER LUGGAGE | 1 | $324.95 | |
| 8 | 1411-201 | DECAL,WARNING-RACK(50 LB.) | 1 | $6.47 | |
| 9 | 3303-227 | RUBBER WIND SCREEN | 1 | $1.92 | |
| 10 | 3303-233 | COLLAR FLOOR | 1 | $2.33 | |
| 11 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 12 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 13 | 2411-465 | DECAL,"ARCTIC CAT" | 1 | $5.65 |
