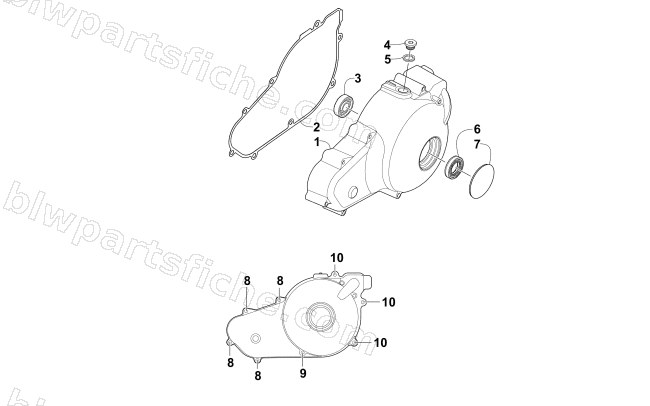

2013 Arctic Cat 1000 XT — MAGNETO SIDE ENGINE COVERS
2013 1000 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0806-151 | COVER,KURT,MAG-MACH | 1 | $133.95 | |
| 2 | 0830-132 | GASKET,MAGNETO COVER,VTWIN | 1 | $12.35 | |
| 3 | 0832-010 | BEARING,CONRAD-SC03A78C3 | 1 | $66.95 | |
| 4 | 0826-155 | PLUG,TDC INSPECTION | 1 | $10.97 | |
| 5 | 0830-015 | WASHER, CRUSH, 16 x 22 x 2 | 1 | $1.92 | |
| 6 | 0830-176 | SEAL,CAN,47X16X5.5 | 1 | $20.63 | |
| 7 | 0806-066 | CAP,MAGNETO COVER,VTWIN | 1 | $3.57 | |
| 8 | 8468-650 | SCREW,MACH-TSPNH M6X1.0X50 CL8.8 BLK | 1 | $1.78 | |
| 9 | 8468-695 | SCREW,MACH-TSPNH M6X1.0X95 CL8.8 BLK | 1 | $2.75 | |
| 10 | 8468-665 | SCREW,MACH-TSPNH M6X1.0X65 CL8.8 BLK | 1 | $1.23 |
