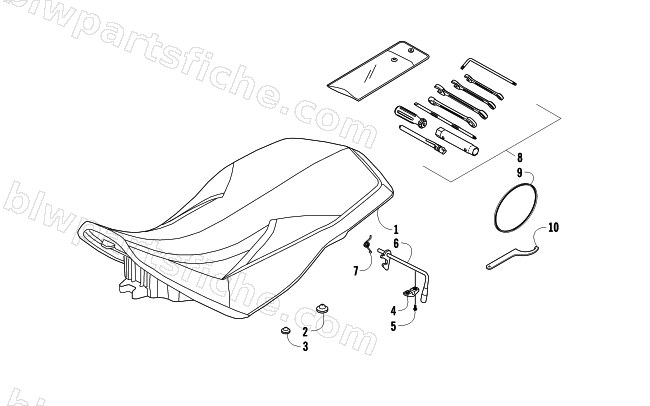

SEAT ASSEMBLY
2012 XC 450 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-468 | SEAT ASSY | 1 | $292.95 | |
| 2 | 3306-470 | RUBBER SEAT CUSHION | 1 | $1.92 | |
| 3 | 3306-581 | BUMPER,SEAT | 1 | $2.61 | |
| 4 | 3306-471 | HOLDER HOOK BAR | 1 | $23.39 | |
| 5 | 3306-474 | BOLT M4 | 1 | $1.23 | |
| 6 | 3306-469 | LATCH COMP SEAT | 1 | $23.39 | |
| 7 | 3306-472 | SPRING HOOK BAR | 1 | $3.30 | |
| 8 | 3306-473 | TOOL SET | 1 | $50.95 | |
| 9 | 3303-242 | BAND TOOL SET | 1 | $1.64 | |
| 10 | 1441-797 | WRENCH,SPANNER | 1 | $0.00 |
