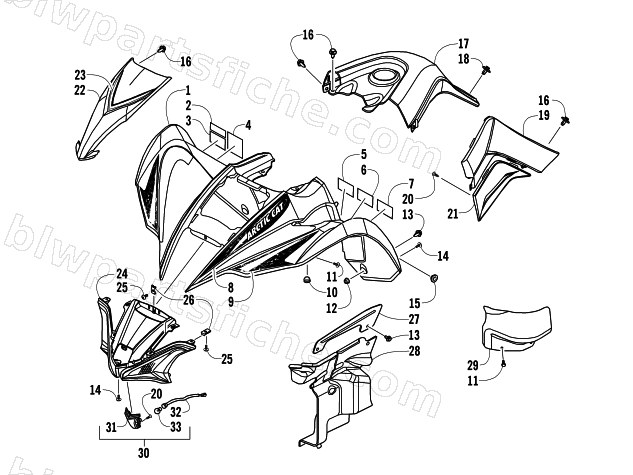

2012 Arctic Cat XC 450 EFI — FRONT BODY ASSEMBLY
2012 XC 450 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-712 | FENDER,FRONT-W/DECALS (BLACK DIAMOND) | 1 | $915.95 | |
| 1 | 3306-714 | FENDER,FRONT-W/DECALS (SHINING ORANGE) | 1 | $915.95 | |
| 2 | 1411-577 | DECAL,WARNING-OFF ROAD ONLY | 1 | $50.95 | |
| 3 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 4 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 5 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 6 | 1411-109 | DECAL,WARNING-REVERSE | 1 | $10.97 | |
| 7 | 0411-457 | DECAL,WARNING-RVS/PRE RIDE | 1 | $163.95 | |
| 8 | 2411-858 | DECAL,HOOD-BLK/LIME-RH | 1 | $31.95 | |
| 8 | 2411-859 | DECAL,HOOD-BLK/LIME-LH | 1 | $31.95 | |
| 8 | 2411-860 | DECAL,HOOD-ORG/BLK-RH | 1 | $42.95 | |
| 8 | 2411-861 | DECAL,HOOD-ORN/BLK-LH | 1 | $42.95 | |
| 9 | 2411-854 | DECAL,FENDER-FRONT-BLK/LIME-RH | 1 | $42.95 | |
| 9 | 2411-855 | DECAL,FENDER-FRONT-BLK/LIME-LH | 1 | $42.95 | |
| 9 | 2411-850 | DECAL,FENDER-FRONT-ORN/BLK-RH | 1 | $42.95 | |
| 9 | 2411-851 | DECAL,FENDER-FRONT-ORN/BLK-LH | 1 | $42.95 | |
| 10 | 3306-458 | BUMPER,SEAT | 1 | $2.61 | |
| 11 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 12 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 13 | 3305-448 | CLIP,MUDGUARD | 1 | $2.33 | |
| 14 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 15 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 16 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 17 | 3306-709 | COVER,TANK (BLACK DIAMOND) | 1 | $316.95 | |
| 17 | 3306-710 | COVER,TANK (SHINING ORANGE) | 1 | $316.95 | |
| 18 | 3304-652 | BOLT WASHER 6*12 | 1 | $1.09 | |
| 19 | 3306-570 | COVER A R SIDE (BLACK) | 1 | $50.95 | |
| 19 | 3306-571 | COVER A L SIDE (BLACK) | 1 | $50.95 | |
| 20 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 | |
| 21 | 3306-744 | COVER B.R SIDE (BLK DIAMOND) | 1 | $94.95 | |
| 21 | 3306-745 | COVER B.L SIDE (BLK DIAMOND) | 1 | $94.95 | |
| 22 | 3306-715 | COVER,FRONT (BLACK DIAMOND) | 1 | $51.95 | |
| 22 | 3306-716 | COVER,FRONT (SHINING ORANGE) | 1 | $30.95 | |
| 23 | 2411-863 | DECAL,CREST-HOOD-BLK/LIME | 1 | $50.95 | |
| 23 | 2411-862 | DECAL,CREST-HOOD-ORN/BLK | 1 | $50.95 | |
| 24 | 3306-539 | GRILLE,FRONT | 1 | $20.63 | |
| 25 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 26 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 27 | 3306-542 | PANEL B,SPLASH RH/LH | 1 | $6.95 | |
| 28 | 3306-284 | PANEL,SPLASH RIGHT | 1 | $20.63 | |
| 28 | 3306-285 | PANEL SPLASH LEFT | 1 | $20.63 | |
| 29 | 3313-844 | PROTECTOR HOSE | 1 | $16.49 | |
| 30 | 3306-507 | LIGHT ASSY FR POSITION | 1 | $85.95 | |
| 31 | 3306-508 | LIGHT FR POSITION COMP | 1 | $26.95 | |
| 32 | 3306-509 | SOCKET COMP POSITION LIGHT | 1 | $20.63 | |
| 33 | 3303-847 | BULB POSITION LIGHT 12V5W | 1 | $5.65 |
