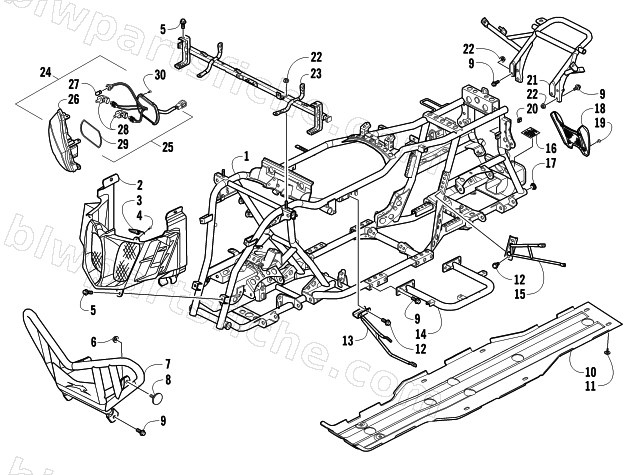

BUMPER, FRAME, AND HEADLIGHT ASSEMBLIES
2012 XC 450 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-521 | BODY COMP. FRAME | 1 | $2,541.95 | |
| 2 | 3306-453 | FASCIA,LOWER-FRONT | 1 | $33.95 | |
| 3 | 3306-541 | STAY,FRONT | 1 | $4.82 | |
| 4 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 | |
| 5 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 6 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 7 | 3306-531 | PIPE COMP, FRONT BUMPER | 1 | $203.95 | |
| 8 | 3305-272 | REFLEX REFLECTOR (AMBER) | 1 | $16.49 | |
| 9 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 10 | 3313-755 | PLATE SKID | 1 | $74.95 | |
| 11 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 12 | 3304-544 | BOLT FLANGE 8*12 | 1 | $1.78 | |
| 13 | 3306-524 | STAY R FRONT FENDER | 1 | $20.63 | |
| 13 | 3306-525 | STAY L FRONT FENDER | 1 | $20.63 | |
| 14 | 3306-522 | FOOTREST R-WELDMENT | 1 | $82.95 | |
| 14 | 3306-523 | FOOTREST L-WELDMENT | 1 | $82.95 | |
| 15 | 3306-526 | STAY R REAR FENDER | 1 | $26.95 | |
| 15 | 3306-527 | STAY L REAR FENDER | 1 | $26.95 | |
| 16 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 17 | 3306-530 | CAP PIPE | 1 | $1.64 | |
| 18 | 3306-489 | COVER GEARBOX | 1 | $12.35 | |
| 19 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 20 | 3306-329 | STOPPER RUBBER | 1 | $2.75 | |
| 21 | 3306-529 | RACK REAR | 1 | $203.95 | |
| 22 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 23 | 3306-597 | TUBE COMP, HEADLIGHT | 1 | $85.95 | |
| 24 | 3306-442 | LIGHT ASS'Y R HEAD | 1 | $275.95 | |
| 24 | 3306-443 | LIGHT ASS'Y L HEAD | 1 | $275.95 | |
| 25 | 3306-446 | SOCKET COMP | 1 | $50.95 | |
| 26 | 3306-444 | UNIT HEAD LIGHT R | 1 | $357.95 | |
| 26 | 3306-445 | UNIT HEAD LIGHT L | 1 | $357.95 | |
| 27 | 3313-508 | BULB,BACKUP(R5W -12V 5W) (CLEAR) | 1 | $6.75 | |
| 28 | 3306-447 | BULB HEAD LIGHT (12V 35W) | 1 | $42.95 |
