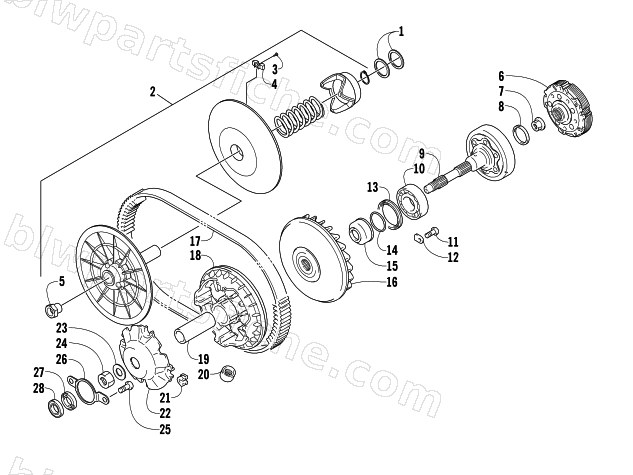

2012 Arctic Cat WILDCAT 1000 GT — TRANSMISSION ASSEMBLY (ENGINE SERIAL NO. UP TO 20044789)
2012 WILDCAT 1000 GT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0828-076 | SHIM, 25 X 30 X .90 | 1 | $4.95 | |
| 2 | 0823-537 | PULLEY,DRIVEN-ASSY(LP3) | 1 | $743.95 | |
| 3 | 0823-177 | SCREW,CAM SHOE | 1 | $2.06 | |
| 4 | 0823-176 | SHOE,CAM-DRIVEN PULLEY | 1 | $20.63 | |
| 5 | 0823-178 | R/B 0823-457 | 1 | $18.95 | |
| 6 | 0823-484 | CLUTCH CENTRIFICAL-6 PLATE-Z 2 | 1 | $243.95 | |
| 7 | 0827-011 | NUT,HF-CCW M18x1.5 | 1 | $4.54 | |
| 8 | 0830-189 | SEAL,DRUM SHAFT | 1 | $10.97 | |
| 9 | 0823-365 | R/B 0823-556 | 1 | $342.95 | |
| 10 | 0832-009 | BEARING,CONRAD-6208RUEF- 1 | 1 | $90.95 | |
| 11 | 0826-029 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $0.68 | |
| 12 | 0822-010 | RETAINER, BEARING | 1 | $3.16 | |
| 13 | 0830-244 | SEAL,OIL (52X70X8) | 1 | $16.49 | |
| 14 | 0470-531 | O-RING,INTAKE MANIFOLD | 1 | $3.16 | |
| 15 | 0823-015 | SPACER, FIXED DRIVE | 1 | $58.95 | |
| 16 | 0823-272 | SHEAVE,STATIONARY-DRIVE-MACH-Z- | 1 | $82.95 | |
| 17 | 0823-231 | BELT,DRIVE | 1 | $176.95 | |
| 18 | 0823-273 | SHEAVE,MOVABLE DRIVE-ASM-Z- | 1 | $185.95 | |
| 19 | 0823-271 | SPACER,MOVABLE DRIVE FACE 91 -Z- | 1 | $45.95 | |
| 20 | 0823-295 | ROLLER, MOVABLE DRIVE(GREY) (28G) | 1 | $8.21 | |
| 21 | 0823-277 | DAMPER,MOVABLE DRIVE-Z- | 1 | $4.68 | |
| 22 | 0823-276 | PLATE,MOVABLE DRIVE-Z- | 1 | $26.95 | |
| 23 | 0828-106 | WASHER, CLUTCH PLATE | 1 | $3.44 | |
| 24 | 0827-010 | NUT,HEX COUNTERSUNK (M20x1.5) | 1 | $5.95 | |
| 25 | 0826-031 | SCREW,MACH-TSFH M6 X1X12 W/ THD LOCK | 1 | $1.23 | |
| 26 | 0823-020 | RETAINER, BEARING | 1 | $17.87 | |
| 27 | 0830-176 | SEAL,CAN,47X16X5.5 | 1 | $20.63 | |
| 28 | 0832-010 | BEARING,CONRAD-SC03A78C3 | 1 | $66.95 |
