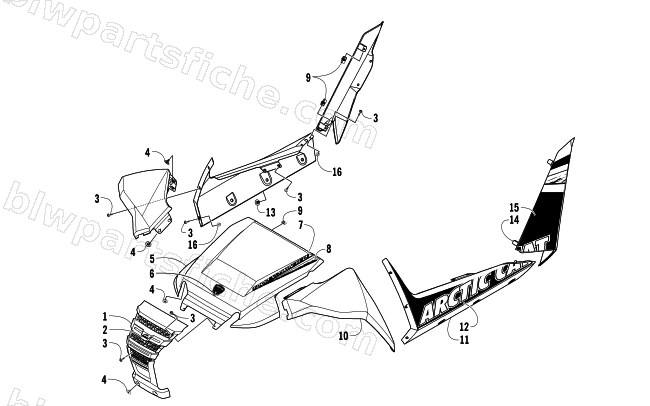

2012 Arctic Cat WILDCAT 1000 GT — FRONT AND SIDE PANEL ASSEMBLIES
2012 WILDCAT 1000 GT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-685 | GRILLE,FRONT | 1 | $41.95 | |
| 2 | 2411-943 | DECAL,GRILL-FRONT | 1 | $15.11 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 5 | 4506-786 | HOOD,A.M.GREEN-PTD | 1 | $320.95 | |
| 5 | 4506-772 | HOOD,M.BLACK-PTD | 1 | $337.95 | |
| 6 | 9611-603 | DECAL,EMBLEM-50TH ANNIVERSARY-GRN | 1 | $32.95 | |
| 7 | 2411-945 | DECAL,HOOD & REAR VENT | 1 | $3.30 | |
| 8 | 2411-946 | DECAL,HOOD RH-GN | 1 | $13.73 | |
| 8 | 2411-947 | DECAL,HOOD LH-GN | 1 | $13.73 | |
| 8 | 2411-958 | DECAL,HOOD RH-BL | 1 | $10.97 | |
| 8 | 2411-959 | DECAL,HOOD LH-BL | 1 | $10.97 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 4506-788 | PANEL,FENDER-FRT-RH A.M.GREEN-PTD | 1 | $212.95 | |
| 10 | 4506-789 | PANEL,FENDER-FRT-LH A.M.GREEN-PTD | 1 | $212.95 | |
| 10 | 4506-756 | PANEL,FENDER-FRT-RH M.BLACK-PTD | 1 | $212.95 | |
| 10 | 4506-757 | PANEL,FENDER-FRT-LH M.BLACK-PTD | 1 | $212.95 | |
| 11 | 2416-988 | PANEL,SIDE-LWR-RH-BLK | 1 | $50.95 | |
| 11 | 2416-989 | PANEL,SIDE-LWR-LH-BLK | 1 | $50.95 | |
| 12 | 2411-954 | DECAL,SIDE-LOWER RH-GRN | 1 | $42.95 | |
| 12 | 2411-955 | DECAL,SIDE-LOWER LH-GRN | 1 | $42.95 | |
| 12 | 2411-966 | DECAL,SIDE-LOWER RH-BLK | 1 | $42.95 | |
| 12 | 2411-967 | DECAL,SIDE-LOWER LH-BLK | 1 | $42.95 | |
| 13 | 1423-133 | SCREW,SHOULDER 11 X 3.5 X 6MM | 1 | $3.44 | |
| 14 | 2416-990 | PANEL,SIDE-UPR-REAR-RH-BLK | 1 | $37.95 | |
| 14 | 2416-991 | PANEL,SIDE-UPR-REAR-LH-BLK | 1 | $37.95 | |
| 15 | 2411-956 | DECAL,SIDE-REAR RH-GRN | 1 | $42.95 | |
| 15 | 2411-957 | DECAL,SIDE-REAR LH-GRN | 1 | $42.95 | |
| 15 | 2411-968 | DECAL,SIDE-REAR RH-BLK | 1 | $42.95 | |
| 15 | 2411-969 | DECAL,SIDE-REAR LH-BLK | 1 | $42.95 | |
| 16 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 |
