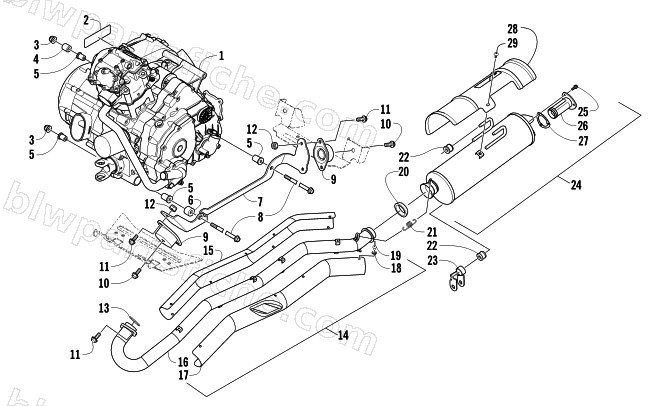

ENGINE AND EXHAUST
2012 TRV 450 GT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-836 | ENGINE,450 KD W/ RUBBER MOUNTS-PACK | 1 | $4,186.95 | |
| 2 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 3 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 4 | 0408-020 | SPACER,ENGINE MOUNT | 1 | $6.75 | |
| 5 | 0801-180 | R/B 0801-268 | 1 | $10.95 | |
| 6 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 7 | 1506-740 | BRACKET,ENGINE-RH-BLACK | 1 | $64.95 | |
| 7 | 1506-741 | BRACKET,ENGINE-LH-BLACK | 1 | $64.95 | |
| 8 | 0423-405 | SCREW,CAP-HFH M10X1.25X215 CL10.9 Z&Y | 1 | $6.34 | |
| 9 | 2406-065 | MOUNT,RUBBER-ENGINE | 1 | $66.95 | |
| 10 | 8408-012 | SCREW,CAP-HFH M10X1.25X12 CL8.8 Z&Y | 1 | $12.35 | |
| 11 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 12 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 13 | 3313-743 | SEAL,EXHAUST PIPE | 1 | $20.63 | |
| 14 | 0512-549 | PIPE,EXHAUST-ASSEMBLY | 1 | $371.95 | |
| 15 | 0512-553 | SHIELD,EXHAUST PIPE INNER | 1 | $66.95 | |
| 16 | 0512-550 | PIPE,EXHAUST-BLACK | 1 | $244.95 | |
| 17 | 0512-548 | SHIELD,EXHAUST PIPE OUTER | 1 | $105.95 | |
| 18 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 19 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 20 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 21 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 22 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 23 | 1506-732 | CHANNEL,MUFFLER SUPPORT-BLACK | 1 | $23.39 | |
| 24 | 0512-355 | MUFFLER-PAINTED | 1 | $509.95 | |
| 25 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 26 | 0512-219 | SPARK ARRESTER-ASSEMBLY | 1 | $58.95 | |
| 27 | 0412-313 | GASKET,SPARK ARRESTER | 1 | $26.95 | |
| 28 | 0412-373 | COVER,MUFFLER | 1 | $45.95 | |
| 29 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 |
