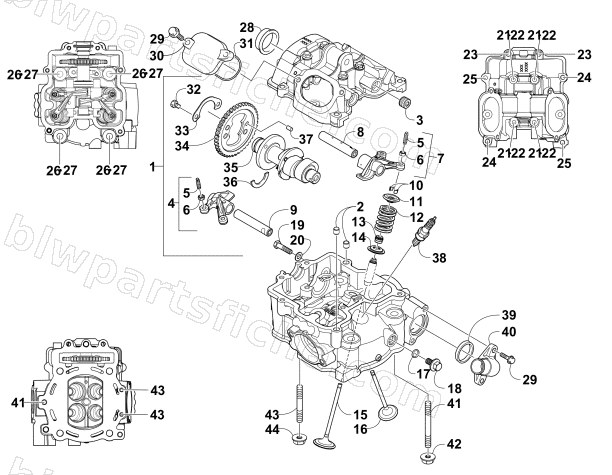

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY
2012 TRV 1000 GT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0808-227 | CYLINDER HEAD ASSEMBLY-SERVICE | 1 | $873.95 | |
| 2 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 3 | 0831-092 | PLUG,M14X1.5W/1:16 TAPER (W/SEALANT) | 1 | $1.37 | |
| 4 | 0809-237 | R/B 0809-319 | 1 | $248.95 | |
| 5 | 0809-240 | SCREW,LASH ADJUSTMENT | 1 | $0.26 | |
| 6 | 0827-059 | NUT,HEX M5X0.5 | 1 | $0.26 | |
| 7 | 0809-234 | R/B 0809-318 | 1 | $248.95 | |
| 8 | 0809-241 | SHAFT,ROCKER ARM-INTAKE | 1 | $24.77 | |
| 9 | 0809-242 | SHAFT,ROCKER ARM-EXHAUST | 1 | $24.77 | |
| 10 | 0809-233 | KEEPER,VALVE | 1 | $2.61 | |
| 11 | 0809-232 | RETAINER,UPPER,SPRING | 1 | $16.49 | |
| 12 | 0809-231 | SPRING,VALVE | 1 | $5.92 | |
| 13 | 0830-186 | SEAL,VALVE STEM | 1 | $10.97 | |
| 14 | 0809-230 | SEAT,VALVE SPRING | 1 | $4.26 | |
| 15 | 0809-228 | VALVE,INTAKE-31.6MM | 1 | $32.95 | |
| 16 | 0809-229 | VALVE,EXHAUST-27.9MM | 1 | $64.95 | |
| 17 | 0830-213 | ORING,2-012 | 1 | $0.95 | |
| 18 | 0826-157 | SCREW,CAP-HEX FLANGE HEAD-M10X1.25 | 1 | $6.47 | |
| 19 | 8400-812 | SCREW,CAP-HH M8-1.25X12 8.8 Z&C | 1 | $0.95 | |
| 20 | 0830-025 | WASHER, CRUSH, 8 x 13 x 1 | 1 | $2.33 | |
| 21 | 0826-149 | SCREW,CAP HFH M6X1X55 | 1 | $13.73 | |
| 22 | 0830-155 | SEAL,FASTENER | 1 | $3.16 | |
| 23 | 0826-002 | SCREW,CAP HFH M6 x 1 x 30 | 1 | $1.50 | |
| 24 | 0826-005 | SCREW,CAP HFH M6 x 1 x 35 | 1 | $2.33 | |
| 25 | 0826-006 | SCREW,CAP HFH M6 x 1 x 25 | 1 | $0.95 | |
| 26 | 0808-090 | BOLT, HEAD, M10x1.25 - 173 | 1 | $24.77 | |
| 27 | 0830-147 | WASHER,STEEL,10X22X2.3 | 1 | $0.95 | |
| 28 | 0808-077 | PLUG,CYLINDER HEAD | 1 | $12.35 | |
| 29 | 0826-007 | SCREW,CAP HFH M6 x 1 x 20 | 1 | $1.09 | |
| 30 | 0808-003 | CAP, VALVE INSPECTION | 1 | $13.73 | |
| 31 | 0830-004 | O-RING, INSPECTION CAP | 1 | $3.71 | |
| 32 | 0826-034 | SCREW,CAP HH-M6-1x10.5 W/THD LOCK | 1 | $0.68 | |
| 33 | 0828-004 | WASHER,LOCK CAMSHAFT | 1 | $3.02 | |
| 34 | 0809-212 | CAM SPROCKET | 1 | $38.95 | |
| 35 | 0809-246 | CAMSHAFT,VTWIN-FRONT CYL-ASSY | 1 | $405.95 | |
| 35 | 0809-248 | CAMSHAFT,VTWIN REAR CYL ASSY | 1 | $405.95 | |
| 36 | 0809-003 | PLATE,CAM RETAINER | 1 | $15.11 | |
| 37 | 0829-049 | PIN,SOLID DOWEL-M5X8 | 1 | $1.37 | |
| 38 | 0217-799 | SPARK PLUG, CPR8E | 1 | $10.97 | |
| 39 | 0830-120 | SEAL, HOUSING, WATERNECK | 1 | $10.97 | |
| 40 | 0808-008 | COVER, THERMOSTAT | 1 | $17.87 | |
| 41 | 0827-062 | STUD,M8X1.25 X 75 | 1 | $10.97 | |
| 42 | 8424-804 | NUT,HEX-FLG M8X1.25 CL8 RIE SIL | 1 | $0.95 | |
| 43 | 0827-030 | STUD, M6 x 1 x 70 | 1 | $4.82 | |
| 44 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 |
