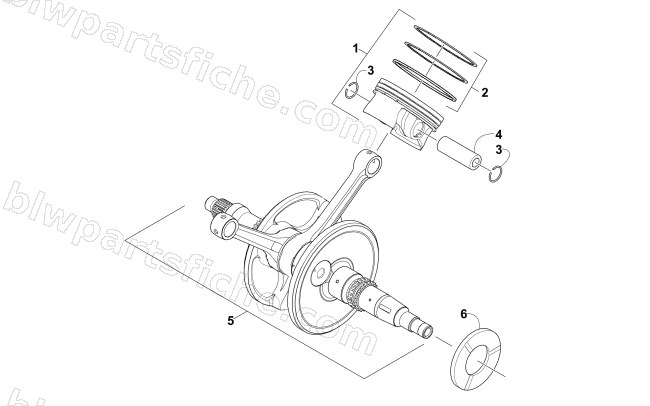

CRANKSHAFT AND PISTON ASSEMBLY

2012 TRV 1000 CRUISER

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	0805-299	R/B 0805-409	1	$279.95
2	0805-164	RING SET,PISTON	1	$152.95
3	0805-199	CIRCLIP,PISTON PIN-A950	1	$12.35
4	0805-198	PIN,PISTON-A950	1	$37.95
5	0805-327	CRANKSHAFT,FINAL-ASSEMBLY V-TWIN-(N1)	1	$1,085.95
6	0805-273	WASHER,THRUST-CRANK	1	$33.95
