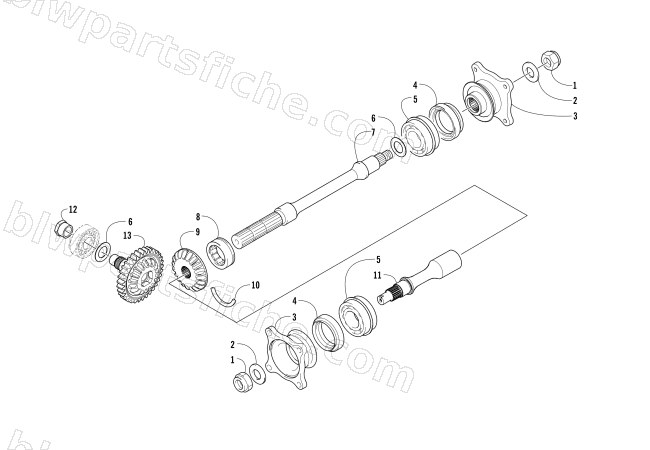

SECONDARY DRIVE ASSEMBLY
2012 PROWLER 700 XTX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0827-013 | NUT,HEX SHOULDER M16X1.5 | 1 | $3.02 | |
| 2 | 0828-020 | WASHER, STEEL, 16.3 x 30 x 3 | 1 | $3.30 | |
| 3 | 0819-005 | FLANGE, OUTPUT JOINT - REAR, ASSEMBLY | 1 | $69.95 | |
| 4 | 0830-043 | SEAL,OIL-DRIVEN SHAFT | 1 | $6.89 | |
| 5 | 0832-017 | R/B 0832-107 | 1 | $125.95 | |
| 6 | 0828-021 | SHIM, 25 x 34 x .25 | 1 | $2.47 | |
| 6 | 0828-022 | SHIM, 25 x 34 x .30 | 1 | $8.21 | |
| 6 | 0828-023 | SHIM, 25 X 34 X 0.35 MM | 1 | $17.87 | |
| 6 | 0828-024 | SHIM,. 25 x 34 x .90 | 1 | $17.87 | |
| 6 | 0828-025 | SHIM, 25 x 34 x .95 | 1 | $17.87 | |
| 6 | 0828-026 | SHIM, 25 x 34 x 1.00 | 1 | $17.87 | |
| 6 | 0828-027 | SHIM, 25 x 34 x 1.05 | 1 | $17.87 | |
| 6 | 0828-028 | SHIM, 25 x 34 x 1.10 | 1 | $16.49 | |
| 6 | 0828-029 | SHIM, 25 x 34 x 1.15 | 1 | $17.87 | |
| 7 | 0819-089 | SHAFT,SECONDARY DRIVEN-FRONT | 1 | $217.95 | |
| 8 | 0832-016 | BEARING, DRIVEN GEAR | 1 | $50.95 | |
| 9 | 0822-106 | GEAR,SECONDARY DRIVEN (GB-DN) | 1 | $129.95 | |
| 10 | 0819-011 | RING, DRIVEN BEARING | 1 | $17.87 | |
| 11 | 0819-053 | SHAFT, SECONDARY DRIVEN - REAR | 1 | $82.95 | |
| 12 | 0827-052 | NUT, NF-GEARS | 1 | $13.73 | |
| 13 | 0822-131 | GEAR,NF SECONDARY-20 DEG PA | 1 | $264.95 |
