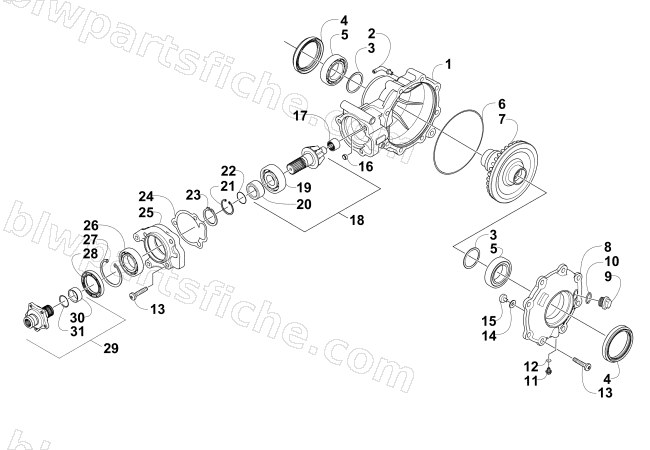

REAR DRIVE GEARCASE ASSEMBLY
2012 PROWLER 550 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1502-885 | R/B 2502-097 | 1 | $1,420.95 | |
| 1 | 1502-898 | HOUSING,GEARCASE-MACH | 1 | $280.95 | |
| 2 | 1402-442 | BARB, 90 DEGREE | 1 | $20.63 | |
| 3 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 3 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 3 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 3 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 3 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 4 | 2402-150 | SEAL,GEARCASE-HR | 1 | $23.39 | |
| 5 | 0402-393 | BEARING,BALL-SR(6008 Z C-O) | 1 | $17.87 | |
| 6 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 7 | 1402-245 | GEAR,REAR (36 TOOTH 4.0) | 1 | $357.95 | |
| 8 | 0502-741 | COVER,GEARCASE-MACH | 1 | $108.95 | |
| 9 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 10 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 | |
| 11 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 12 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 13 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 14 | 0402-429 | SHIM,6.3X18X1.3 | 1 | $10.97 | |
| 14 | 0402-430 | SHIM,6.3X18X1.4 | 1 | $12.35 | |
| 14 | 0402-431 | SHIM,6.3X18X1.5 | 1 | $12.35 | |
| 14 | 0402-432 | SHIM,6.3X18X1.6 | 1 | $10.97 | |
| 14 | 0402-433 | SHIM,6.3X18X1.7 | 1 | $12.35 | |
| 15 | 0402-326 | BUTTON,THRUST | 1 | $6.34 | |
| 16 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 17 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 18 | 1502-937 | GEAR,(9T 4.0)PINION-ASSEMBLY | 1 | $200.95 | |
| 19 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 20 | 1402-977 | COLLAR,RETAINING | 1 | $49.95 | |
| 21 | 1423-067 | RING,RETAINING-INTL-65mm (DHO-62 ST ZDL) | 1 | $2.06 | |
| 22 | 0423-633 | O-RING(25 X 1.5) | 1 | $1.92 | |
| 23 | 0423-546 | RING,RETAINING(MSR35) | 1 | $20.63 | |
| 24 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 25 | 0502-746 | HOUSING,PINION-MACH | 1 | $148.95 | |
| 26 | 0402-324 | BEARING,BALL (6007 OPEN ) | 1 | $33.95 | |
| 27 | 0402-347 | RING,RETAINING-INT 62 | 1 | $4.95 | |
| 28 | 1402-314 | SEAL(44X62X8) | 1 | $26.95 | |
| 29 | 0502-766 | SHAFT, INPUT-ASSY(SPL) | 1 | $144.95 | |
| 31 | 0423-547 | O-RING(2-028) | 1 | $1.95 |
