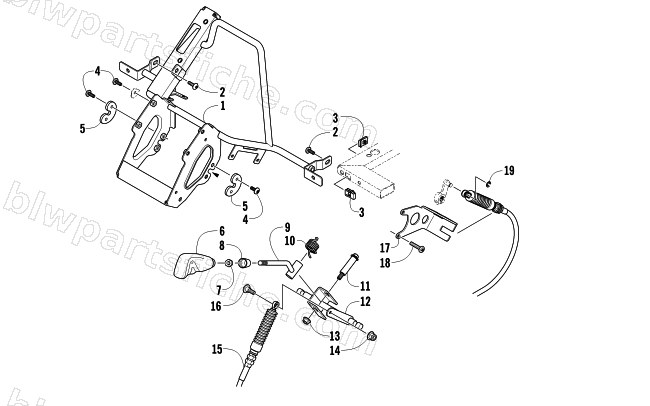

2012 Arctic Cat PROWLER 1000 XTZ — SHIFTER ASSEMBLY
2012 PROWLER 1000 XTZ
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-516 | MOUNT,SHIFTER-BLACK | 1 | $174.95 | |
| 2 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 3 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 4 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 5 | 1402-275 | RETAINER ,SHIFT LINKAGE | 1 | $2.88 | |
| 6 | 1402-844 | KNOB,SHIFT (JAM) | 1 | $66.95 | |
| 7 | 0423-885 | NUT, JAM 3/8-16 Z&BLK | 1 | $1.50 | |
| 8 | 1402-854 | CAP,SHIFT KNOB | 1 | $17.87 | |
| 9 | 1502-510 | LEVER,SHIFT-BLACK | 1 | $74.95 | |
| 10 | 1402-880 | SPRING,SHIFT | 1 | $20.63 | |
| 11 | 0423-505 | SCREW,SHOULDER-M8-1.25X45 | 1 | $1.78 | |
| 12 | 1502-666 | AXLE,SHIFT-PTD. BLACK | 1 | $66.95 | |
| 13 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 0487-063 | CABLE,SHIFT | 1 | $126.95 | |
| 16 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 17 | 2516-609 | BRACKET,SHIFT CABLE ENGINE MOUNT-BLK-PTD | 1 | $26.95 | |
| 18 | 8468-635 | SCREW,MACH-TSPNH M6X1.0X35 CL8.8 BLK | 1 | $3.16 | |
| 19 | 0124-057 | E-RING | 1 | $1.64 |
