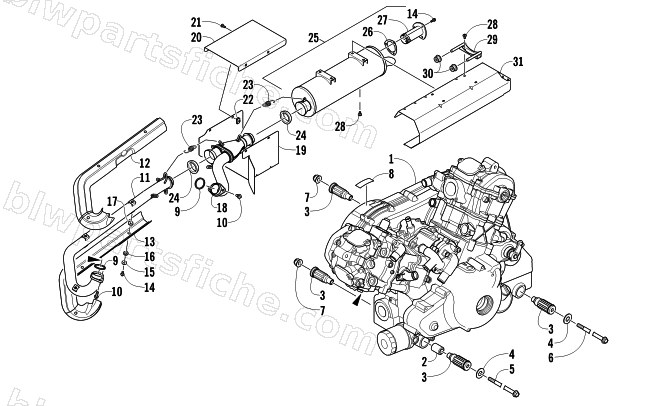

2012 Arctic Cat PROWLER 1000 XTZ — ENGINE AND EXHAUST
2012 PROWLER 1000 XTZ
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0800-095 | ENGINE,A950G H2 ASSY (PRLR) | 1 | $6,454.95 | |
| 2 | 0801-128 | SPACER,ENGINE MOUNT,L31 | 1 | $13.73 | |
| 3 | 0801-091 | MOUNT,RUBBER-ENGINE | 1 | $37.95 | |
| 4 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 5 | 0423-734 | SCREW,CAP HFH M10-1.25X220 | 1 | $22.01 | |
| 6 | 0423-451 | SCREW,CAP-HFH M10X1.25X190 CL10.9 Z&Y | 1 | $5.95 | |
| 7 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 8 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 9 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 10 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 11 | 0512-517 | PIPE,EXHAUST-FRONT-BLACK | 1 | $283.95 | |
| 12 | 0512-528 | SHIELD,EXHAUST-UPPER | 1 | $133.95 | |
| 13 | 0512-529 | SHIELD,EXHAUST-LOWER | 1 | $133.95 | |
| 14 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 15 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 16 | 0423-909 | ISOLATOR,TOP | 1 | $4.26 | |
| 17 | 0423-908 | ISOLATOR,BOTTOM | 1 | $4.26 | |
| 18 | 0512-519 | PIPE,EXHAUST-REAR-BLACK | 1 | $260.95 | |
| 19 | 0412-543 | SHIELD,HEAT-COLLECTOR | 1 | $66.95 | |
| 20 | 0412-561 | SHIELD,COLLECTOR-TOP | 1 | $26.95 | |
| 21 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 22 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 23 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 24 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 25 | 0512-500 | MUFFLER-BLACK | 1 | $405.95 | |
| 26 | 0412-313 | GASKET,SPARK ARRESTER | 1 | $26.95 | |
| 27 | 0512-219 | SPARK ARRESTER-ASSEMBLY | 1 | $58.95 | |
| 28 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 29 | 0412-553 | BRACKET,MUFFLER HANGER | 1 | $29.95 | |
| 30 | 0412-544 | GROMMET,EXHAUST HANGER | 1 | $3.30 | |
| 31 | 0412-551 | SHIELD,MUFFLER | 1 | $74.95 |
