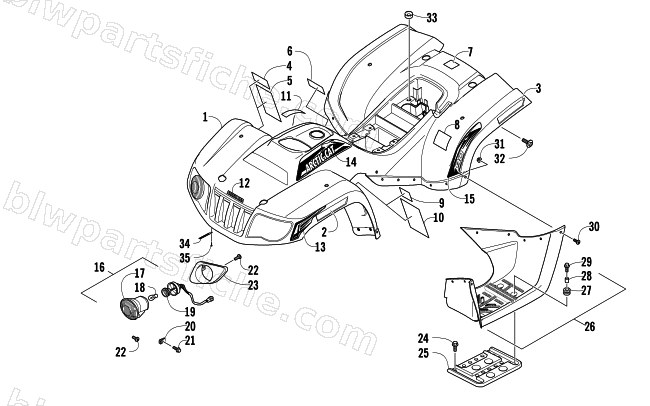

BODY PANEL AND HEADLIGHT ASSEMBLY
2012 90 2X4 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-735 | BODY,MAIN-W/DECALS (LIME) | 1 | $371.95 | |
| 2 | 1411-180 | REFLECTOR,FRONT-RH | 1 | $13.73 | |
| 2 | 1411-181 | REFLECTOR,FRONT-LH | 1 | $13.73 | |
| 3 | 1411-178 | REFLECTOR,REAR-RH | 1 | $13.73 | |
| 3 | 1411-179 | REFLECTOR,REAR-LH | 1 | $13.73 | |
| 4 | 0411-836 | DECAL,WARNING HILL (MINI) | 1 | $82.95 | |
| 5 | 0411-457 | DECAL,WARNING-RVS/PRE RIDE | 1 | $163.95 | |
| 6 | 1411-577 | DECAL,WARNING-OFF ROAD ONLY | 1 | $50.95 | |
| 7 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 8 | 1411-938 | DECAL,WARNING-TIRE/LOAD (MINI) | 1 | $12.35 | |
| 9 | 2411-137 | DECAL,WARNING-AGE(12) | 1 | $22.01 | |
| 10 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 11 | 2411-052 | DECAL,SHIFT | 1 | $17.87 | |
| 12 | 2411-465 | DECAL,"ARCTIC CAT" | 1 | $5.65 | |
| 13 | 2411-592 | DECAL,FENDER-FRONT-RH (90 UTLY) | 1 | $23.39 | |
| 13 | 2411-593 | DECAL,FENDER-FRONT-LH (90 UTLY) | 1 | $23.39 | |
| 14 | 2411-590 | DECAL,SIDE-RH (90 UTLY) | 1 | $42.95 | |
| 14 | 2411-591 | DECAL,SIDE-LH (90 UTLY) | 1 | $42.95 | |
| 15 | 2411-594 | DECAL,FENDER-REAR-LG-RH (90 UTLY) | 1 | $23.39 | |
| 15 | 2411-595 | DECAL,FENDER-REAR-LG-LH (90 UTLY) | 1 | $23.39 | |
| 16 | 3305-976 | LIGHT ASSY HEAD | 1 | $144.95 | |
| 17 | 3305-977 | UNIT HEAD LIGHT | 1 | $100.95 | |
| 18 | 3305-827 | BULB,HEADLIGHT | 1 | $30.95 | |
| 19 | 3305-978 | SOCKET COMP | 1 | $30.95 | |
| 20 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 21 | 3305-828 | BOLT,PAN 5*10 | 1 | $1.23 | |
| 22 | 3304-123 | SCREW WASHER 4MM | 1 | $0.81 | |
| 23 | 3306-736 | COVER,R HEADLIGHT (LIME) | 1 | $12.35 | |
| 23 | 3306-737 | COVER,L HEADLIGHT (LIME) | 1 | $12.35 | |
| 24 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 25 | 3304-494 | FOOTREST-RH | 1 | $37.95 | |
| 25 | 3304-495 | FOOTREST-LH | 1 | $37.95 | |
| 26 | 3306-144 | MUDGUARD ASSY R FLOOR | 1 | $82.95 | |
| 26 | 3306-145 | MUDGUARD ASSY L FLOOR | 1 | $82.95 | |
| 27 | 3303-227 | RUBBER WIND SCREEN | 1 | $1.92 | |
| 28 | 3303-233 | COLLAR FLOOR | 1 | $2.33 | |
| 29 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 30 | 3305-703 | SCREW SPECIAL 6*20 | 1 | $1.78 | |
| 31 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 32 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 33 | 3303-232 | RUBBER REAR FENDER | 1 | $1.92 | |
| 34 | 3304-156 | CLIP 2*70 | 1 | $1.92 | |
| 35 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 |
