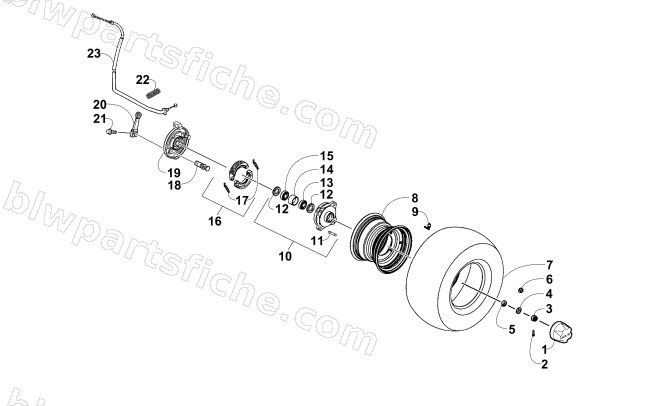

FRONT WHEEL AND BRAKE ASSEMBLIES
2012 90 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-430 | CAP WHEEL SHAFT | 1 | $3.71 | |
| 2 | 3303-470 | PIN SPLIT 3.0*25 30251 CPN | 1 | $1.37 | |
| 3 | 3303-328 | NUT CASTLE 12MM | 1 | $3.57 | |
| 4 | 3303-279 | WASHER 12MM | 1 | $3.02 | |
| 5 | 3303-164 | COLLAR FR WHEEL SIDE | 1 | $3.30 | |
| 6 | 3303-266 | NUT U FLANGE 10MM | 1 | $2.06 | |
| 7 | 3303-429 | TIRE ASSY FR (KENDA) | 1 | $105.95 | |
| 8 | 3303-166 | RIM COMP WHEEL (SILVER) | 1 | $90.95 | |
| 9 | 3303-887 | R/B 3304-562 | 1 | $12.95 | |
| 10 | 3303-165 | HUB ASSY FR | 1 | $78.95 | |
| 11 | 3303-463 | BOLT STUD 10*17 | 1 | $2.61 | |
| 12 | 3303-456 | DUST SEAL 22*35*7 | 1 | $1.78 | |
| 13 | 3303-468 | BEARING BALL RADIAL 6003/17*35*10 | 1 | $20.63 | |
| 14 | 3303-445 | COLLAR FR DIST | 1 | $6.34 | |
| 15 | 3303-467 | BEARING BALL RADIAL 6002/15*32*9 | 1 | $17.87 | |
| 16 | 3303-169 | SHOE ASSY FR | 1 | $42.95 | |
| 17 | 3304-563 | SPG BRAKE SHOE | 1 | $3.71 | |
| 18 | 3303-170 | CAM FR BRAKE | 1 | $17.87 | |
| 19 | 3303-168 | PANEL COMP FR RH | 1 | $69.95 | |
| 19 | 3303-176 | PANEL COMP FR LH | 1 | $69.95 | |
| 20 | 3303-171 | ARM FR BRAKE RH | 1 | $16.49 | |
| 20 | 3303-177 | ARM FR BRAKE LH | 1 | $16.49 | |
| 21 | 3303-355 | BOLT FLANGE 5*24 | 1 | $1.50 | |
| 22 | 3303-172 | SPG BRK ARM RETURN | 1 | $2.33 | |
| 23 | 3303-173 | CABLE COMP FR BRK **(0) C.2004.06.23 | 1 | $30.95 |
