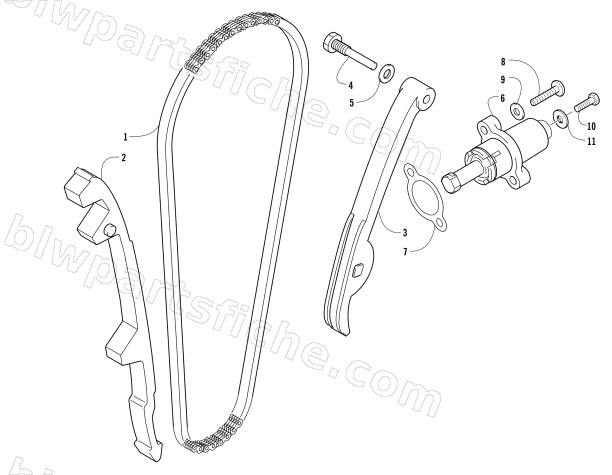

CAM CHAIN ASSEMBLY
2012 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0810-001 | CHAIN, CAM | 1 | $74.95 | |
| 2 | 0810-002 | R/B 0810-071 | 1 | $29.95 | |
| 3 | 0810-003 | R/B 0810-072 | 1 | $54.95 | |
| 4 | 0826-036 | SCREW,CAP HH SHOULDER M8 x 1.25 x 40 | 1 | $5.37 | |
| 5 | 0830-025 | WASHER, CRUSH, 8 x 13 x 1 | 1 | $2.33 | |
| 6 | 0810-004 | ADJUSTER, TENSIONER - ASSEMBLY | 1 | $58.95 | |
| 7 | 0830-018 | GASKET | 1 | $4.54 | |
| 8 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 9 | 0830-107 | SEAL,FASTENER | 1 | $4.95 | |
| 10 | 8400-610 | SCREW,CAP-HH M6X1X10 8.8 Z&C | 1 | $0.54 | |
| 11 | 0828-129 | WASHER,ALUMINUM 6X15X1.6 | 1 | $1.23 |
