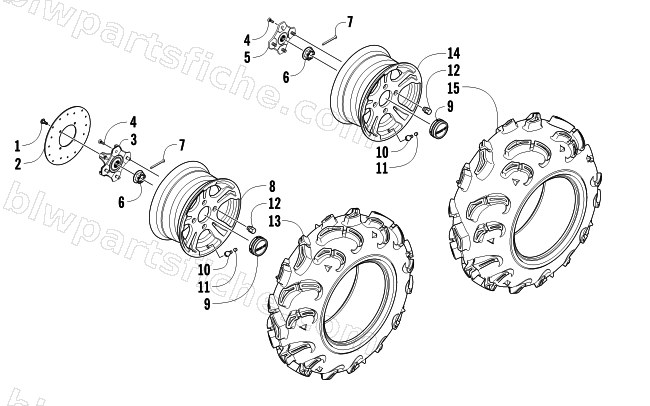

2012 Arctic Cat 700 MUD PRO LTD — WHEEL AND TIRE ASSEMBLY
2012 700 MUD PRO LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-418 | KIT,BRAKE DISC (1402-455) | 1 | $56.95 | |
| 3 | 1502-462 | HUB - ASSEMBLY (W/DISC PEARCH) | 1 | $177.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 1502-464 | HUB,ASSEMBLY (W/O DISC PEARCH) | 1 | $129.95 | |
| 6 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 7 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 8 | 1402-732 | WHEEL,FRONT - ALUMINUM (14X6.5) | 1 | $159.95 | |
| 9 | 1402-736 | CAP, CENTER | 1 | $24.77 | |
| 10 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 12 | 0423-618 | NUT,LUG MOUNTING-CHROME | 1 | $3.57 | |
| 13 | 1402-855 | TIRE,MAXXIS ZILLA-28X9X14 | 1 | $219.95 | |
| 14 | 1402-918 | WHEEL,REAR-ALUMINUM (14X8.0) | 1 | $164.95 | |
| 15 | 1402-901 | TIRE,MAXXIS ZILLA AT 28X11-14 | 1 | $266.95 |
