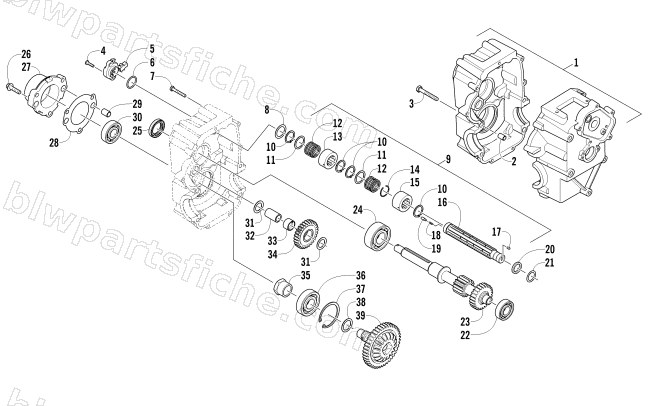

TRANSMISSION RIGHT-SIDE ASSEMBLY
2012 700 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-364 | HOUSING,GEARBOX-SET | 1 | $1,106.95 | |
| 2 | 0829-003 | DOWEL, SPLIT, 11 x 16 | 1 | $10.97 | |
| 3 | 8405-855 | SCREW,CAP-HH M8X1.25X55 CL10.9 Z&BL | 1 | $1.64 | |
| 4 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 5 | 0409-090 | SWITCH,GEAR-ENGINE (08 H1) | 1 | $85.95 | |
| 6 | 0423-714 | O-RING,25.4 X 2.62 | 1 | $16.49 | |
| 7 | 8405-640 | SCREW,CAP-HH M6X1.0X40 CL10.9 Z&BL | 1 | $0.95 | |
| 8 | 0828-040 | WASHER, STEEL, 25 x 34 x .72 | 1 | $1.78 | |
| 9 | 0818-127 | SHIFT-SUB ASSY | 1 | $201.95 | |
| 18 | 0818-017 | SPRING, SHIFT CONTACTS | 1 | $19.25 | |
| 19 | 0818-013 | CONTACT,GEAR SHIFT ASSY | 1 | $13.73 | |
| 20 | 0828-131 | SPACER,SHIFT SHAFT | 1 | $4.95 | |
| 21 | 0828-037 | WASHER, STEEL 20 x 28 x .5 | 1 | $3.02 | |
| 22 | 0832-049 | BEARING,CONRAD-6204 | 1 | $17.87 | |
| 23 | 1402-553 | SHAFT,INPUT | 1 | $891.95 | |
| 24 | 0832-048 | BEARING,DRIVESHAFT | 1 | $122.95 | |
| 25 | 0830-035 | SEAL, DRIVESHAFT | 1 | $16.49 | |
| 26 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 27 | 0801-190 | HOUSING,SECONDARY SHAFT BRNG PTD BLACK | 1 | $220.95 | |
| 28 | 1402-605 | GASKET,BEARING CUP | 1 | $26.95 | |
| 29 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 30 | 0832-050 | BEARING,CONRAD-6304 | 1 | $20.63 | |
| 31 | 0828-016 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $5.51 | |
| 32 | 1402-737 | SHAFT,IDLER-REVERSE | 1 | $54.95 | |
| 33 | 0822-012 | BUSHING, REVERSE IDLE GEAR | 1 | $30.95 | |
| 34 | 0822-011 | GEAR, REVERSE IDLE | 1 | $84.95 | |
| 35 | 0827-052 | NUT, NF-GEARS | 1 | $13.73 | |
| 36 | 0832-077 | BEARING,6305-RADIAL (INA) | 1 | $79.95 | |
| 37 | 0402-347 | RING,RETAINING-INT 62 | 1 | $4.95 | |
| 38 | 0828-021 | SHIM, 25 x 34 x .25 | 1 | $2.47 | |
| 38 | 0828-022 | SHIM, 25 x 34 x .30 | 1 | $8.21 | |
| 38 | 0828-023 | SHIM, 25 X 34 X 0.35 MM | 1 | $17.87 | |
| 38 | 0828-024 | SHIM,. 25 x 34 x .90 | 1 | $17.87 | |
| 38 | 0828-025 | SHIM, 25 x 34 x .95 | 1 | $17.87 | |
| 38 | 0828-026 | SHIM, 25 x 34 x 1.00 | 1 | $17.87 | |
| 38 | 0828-027 | SHIM, 25 x 34 x 1.05 | 1 | $17.87 | |
| 38 | 0828-028 | SHIM, 25 x 34 x 1.10 | 1 | $16.49 | |
| 38 | 0828-029 | SHIM, 25 x 34 x 1.15 | 1 | $17.87 | |
| 39 | 1402-857 | GEAR,BEVEL(17T)-SECONDARY DRIVE | 1 | $341.95 |
