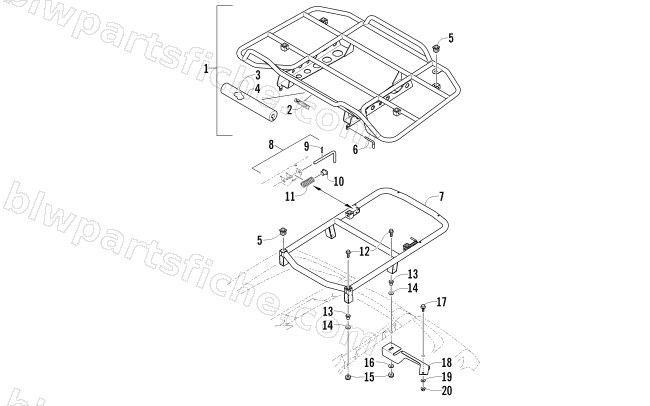

REAR RACK ASSEMBLY
2012 700 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-483 | RACK,REAR-ASSEMBLY | 1 | $405.95 | |
| 2 | 0411-648 | DECAL,WARNING-REAR RACK (200 LB.) | 1 | $3.30 | |
| 3 | 2416-244 | PAD,TUBE-2"OD X.75"ID X12"L | 1 | $17.87 | |
| 4 | 2416-245 | COVER,PAD | 1 | $30.95 | |
| 5 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 6 | 0541-447 | PINS,SPEEDRACK-SS-ASSY | 1 | $16.49 | |
| 7 | 2506-221 | RACK,REAR FRAME-ASSY (SHORT) | 1 | $272.95 | |
| 8 | 0541-504 | PIN,MRP-ASSY | 1 | $20.63 | |
| 9 | 0423-635 | PIN,ROLL-2.5MM | 1 | $1.37 | |
| 10 | 0423-677 | COLLAR,SEAT LATCH | 1 | $2.06 | |
| 11 | 0423-636 | SPRING,MRP LATCH | 1 | $3.57 | |
| 12 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 13 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 14 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 15 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 16 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 17 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 18 | 2506-092 | BRACKET,REAR FENDER SUPPORT-RH-PAINTED | 1 | $26.95 | |
| 18 | 2506-093 | BRACKET,REAR FENDER SUPPORT-LH-PAINTED | 1 | $26.95 | |
| 19 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 20 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 |
