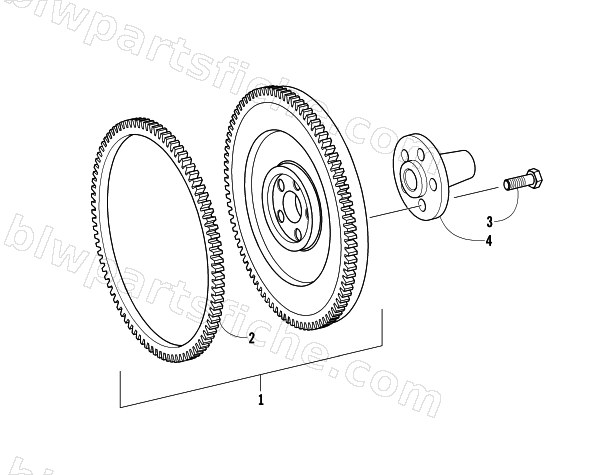

2012 Arctic Cat 700 DIESEL — FLYWHEEL AND CROWN GEAR ASSEMBLY
2012 700 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-040 | FLYWHEEL WITH CROWN Z = 94 (KG 7,4) | 1 | $766.95 | |
| 2 | 3206-037 | CROWN GEAR Ø 238 Z=94 | 1 | $350.95 | |
| 3 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 4 | 1402-560 | AXLE,STUB-CVT DRIVE | 1 | $108.95 |
