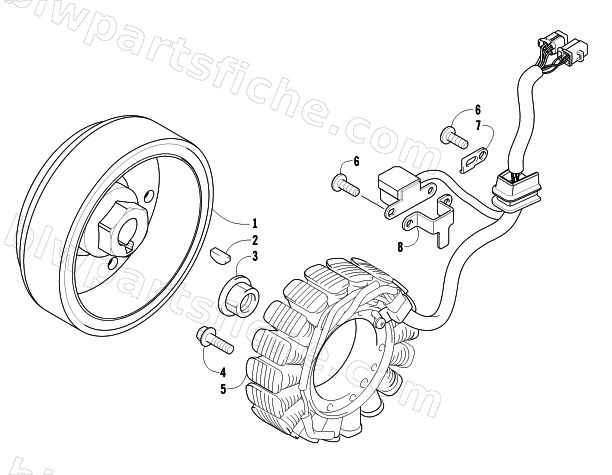

2012 Arctic Cat 650 — MAGNETO ASSEMBLY
2012 650
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0802-036 | ROTOR/FLYWHEEL-LAYOUT (KOKUSAN) | 1 | $509.95 | |
| 2 | 0829-012 | KEY, MAGNETO | 1 | $3.30 | |
| 3 | 0827-014 | NUT,MACH-HEX FLANGE M16X1.5 | 1 | $3.02 | |
| 4 | 8409-632 | SCREW,CAP-HFH M6X1.25X30 CL10.9 W/204 | 1 | $1.37 | |
| 5 | 0802-037 | STATOR-LAYOUT (KOKUSAN) | 1 | $737.95 | |
| 6 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 0802-015 | CLAMP,STATOR ASSY (NO. 1) | 1 | $4.40 | |
| 8 | 0802-016 | CLAMP,STATOR ASSY (NO. 2) | 1 | $12.95 |
