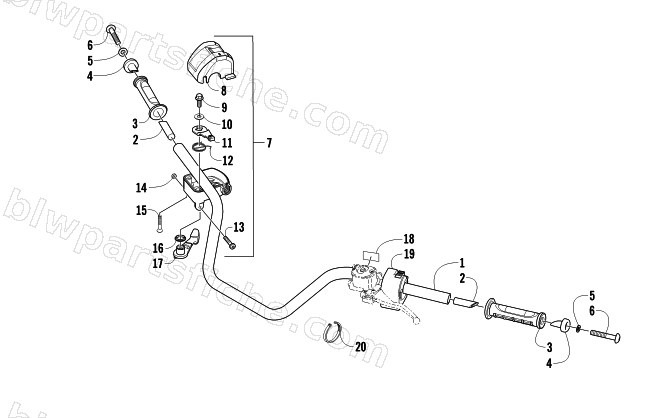

HANDLEBAR ASSEMBLY
2012 425 CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-059 | HANDLEBAR,BLACK | 1 | $76.95 | |
| 2 | 0405-148 | R/B 3323-054 | 1 | $18.95 | |
| 3 | 0405-147 | GRIP,HANDLEBAR (EXTERNAL) | 1 | $20.63 | |
| 4 | 0405-149 | END,HANDLE BAR | 1 | $3.16 | |
| 5 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 6 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 7 | 3306-276 | THROTTLE / SWITCH-ASSEMBLY | 1 | $196.95 | |
| 9 | 3305-344 | BOLT FLANGE 6*16 | 1 | $1.09 | |
| 10 | 3313-739 | WASHER,PLAIN 13MM | 1 | $1.50 | |
| 11 | 3313-838 | BAR THROTTLE | 1 | $4.95 | |
| 12 | 3313-839 | SPRING THROTTLE | 1 | $2.88 | |
| 13 | 3313-740 | SCREW,PAN 5X25(K) | 1 | $3.02 | |
| 14 | 3305-832 | NUT,HEX 5MM | 1 | $2.06 | |
| 15 | 3313-741 | SCREW,OVAL 5X30 | 1 | $1.78 | |
| 16 | 3313-841 | WATERPROOF COVER | 1 | $3.71 | |
| 17 | 3313-842 | LEVER THROTTLE | 1 | $54.95 | |
| 18 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 | |
| 19 | 3313-428 | CONTROL,HANDLE-LEFT(W/ OVERRIDE) | 1 | $148.95 | |
| 20 | 3303-839 | BAND WIRE HARNESS B1 | 1 | $2.33 |
