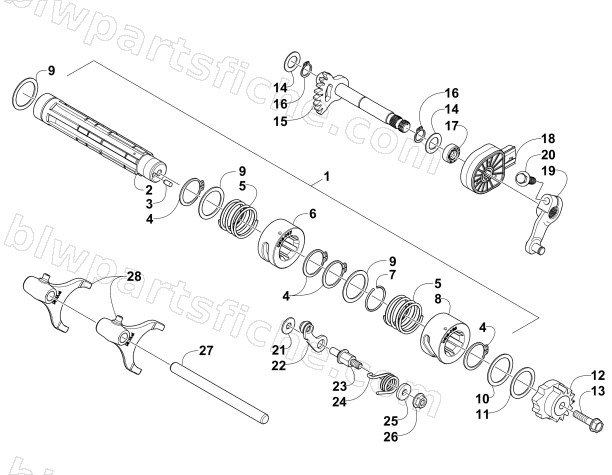

GEAR SHIFTING ASSEMBLY
2012 425 CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0818-126 | DRUM ASSY, GEAR SHIFT | 1 | $473.95 | |
| 2 | 0818-125 | SHIFT SHAFT | 1 | $324.95 | |
| 3 | 3304-439 | ROLLER 4*8 | 1 | $1.23 | |
| 4 | 3304-147 | CIR CLIP EX 25MM | 1 | $1.64 | |
| 5 | 0818-060 | SPRING,CAM,GEAR SHIFT | 1 | $13.73 | |
| 6 | 0818-117 | CAM,REVERSE,GEAR SHIFT | 1 | $82.95 | |
| 7 | 0831-016 | C-RING, CAM | 1 | $1.78 | |
| 8 | 0818-116 | CAM,FORWARD,GEAR SHIFT | 1 | $94.95 | |
| 9 | 0828-079 | WASHER,STEEL,25X32X0.9 | 1 | $2.06 | |
| 10 | 0828-081 | WASHER,THRUST SECONDARY TRANSMISSION | 1 | $1.50 | |
| 11 | 0828-080 | WASHER,STEEL,20X28X0.5 | 1 | $1.09 | |
| 12 | 0818-061 | PLATE,GEAR SHIFT CAM | 1 | $30.95 | |
| 13 | 3304-569 | BOLT FLANGE 6*25 | 1 | $0.81 | |
| 14 | 0828-084 | WASHER, STEEL, 12X20X0.9 | 1 | $1.50 | |
| 15 | 0818-113 | SPINDLE ASSY.,DRUM SHIFT | 1 | $33.95 | |
| 16 | 0831-056 | CIRCLIP TYPE D 1400 | 1 | $1.50 | |
| 17 | 0830-179 | SEAL,SUB GEAR SHIFT | 1 | $4.40 | |
| 18 | 3306-259 | SWITCH,GEAR-ENGINE | 1 | $108.95 | |
| 19 | 3306-316 | ARM,GEAR SELECT ASSY. | 1 | $64.95 | |
| 20 | 3304-551 | BOLT FLANGE 6*22 | 1 | $0.81 | |
| 21 | 0828-083 | WASHER,STEEL,6X14X0.9 | 1 | $0.81 | |
| 22 | 0818-084 | STOPPER,SWING ARM-CAM ASSY | 1 | $13.73 | |
| 23 | 0818-062 | SUPPORT,CAM STOPPER | 1 | $16.49 | |
| 24 | 0818-109 | SPRING,TORSION,CAM ARM | 1 | $3.16 | |
| 25 | 0828-082 | WASHER,STEEL,6X16X2.5 | 1 | $0.81 | |
| 26 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 27 | 0818-021 | SHAFT, SHIFT FORK | 1 | $13.73 | |
| 28 | 0818-088 | FORK,SHIFT | 1 | $180.95 |
