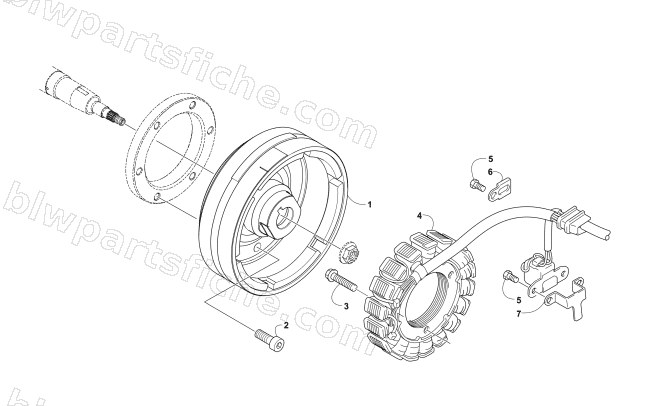

MAGNETO ASSEMBLY
2012 425 CR SE
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 1 |
0802-057 |
FLYWHEEL COMP |
1 |
$220.95 |
|
| 2 |
0826-120 |
SCREW,HSH-M8X1.25X20 |
1 |
$3.02 |
|
| 3 |
3305-945 |
BOLT FLANGE SH 6X32 |
1 |
$1.50 |
|
| 4 |
3323-200 |
STATOR,IGNITION |
1 |
$205.95 |
|
| 5 |
3303-308 |
BOLT HEX 5*12 |
1 |
$0.81 |
|
| 6 |
0802-003 |
CLAMP, MAGNETO |
1 |
$3.44 |
|
| 7 |
0802-004 |
CLAMP, MAGNETO |
1 |
$3.44 |
|
