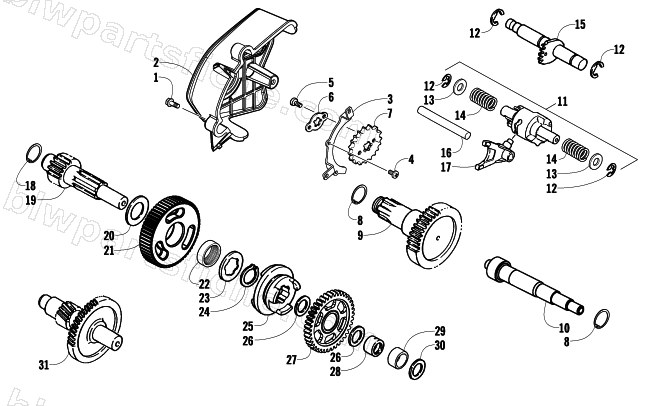

TRANSMISSION ASSEMBLY
2012 300 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-383 | BOLT FLANGE SH 6*20 | 1 | $0.81 | |
| 2 | 3304-286 | COVER CHAIN | 1 | $26.95 | |
| 3 | 3304-515 | STAY CHAIN | 1 | $10.97 | |
| 4 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 5 | 3303-307 | R/B 3307-202 | 1 | $0.65 | |
| 6 | 3304-266 | PLATE A2 FIXING | 1 | $1.92 | |
| 7 | 3304-265 | SPROCKET DRIVE 14T | 1 | $37.95 | |
| 8 | 3304-147 | CIR CLIP EX 25MM | 1 | $1.64 | |
| 9 | 3304-262 | SHAFT FINAL | 1 | $283.95 | |
| 10 | 3305-695 | SHAFT DRIVE | 1 | $148.95 | |
| 11 | 3304-268 | DRUM ASSY GEAR SHIFT | 1 | $187.95 | |
| 12 | 3304-153 | E RING 12 | 1 | $1.92 | |
| 13 | 3304-412 | WASHER THRUST 14MM | 1 | $0.81 | |
| 14 | 3304-700 | SPRING DRUM | 1 | $3.71 | |
| 15 | 3304-269 | SPINDLE COMP DRUM SHIFT | 1 | $33.95 | |
| 16 | 3304-513 | SHAFT GEAR SHIFT FORK GUIDE | 1 | $6.47 | |
| 17 | 3305-693 | FORK GEAR SHIFT | 1 | $126.95 | |
| 18 | 3304-514 | CIRCLIP | 1 | $4.13 | |
| 19 | 3304-259 | SHAFT MAIN | 1 | $309.95 | |
| 20 | 3304-044 | WASHER THRUST 25MM | 1 | $2.06 | |
| 21 | 3304-263 | GEAR,BACKWARD | 1 | $114.95 | |
| 22 | 3304-423 | BRG NEEDLE 25*33*16 | 1 | $69.95 | |
| 23 | 3304-045 | WASHER SPLINE 25MM | 1 | $2.06 | |
| 24 | 3304-056 | SET RING 23MM | 1 | $2.33 | |
| 25 | 3304-264 | SHIFT MAIN | 1 | $156.95 | |
| 26 | 3304-413 | WASHER THRUST 20MM B | 1 | $1.23 | |
| 27 | 3305-694 | GEAR FORWARD | 1 | $150.95 | |
| 28 | 3304-509 | COLLAR 20*22*11 | 1 | $12.35 | |
| 29 | 3304-508 | COLLAR 20*25*11 | 1 | $12.35 | |
| 30 | 3304-042 | WASHER THRUST 20MM | 1 | $1.78 | |
| 31 | 3304-261 | GEAR COMP COUNTER | 1 | $268.95 |
