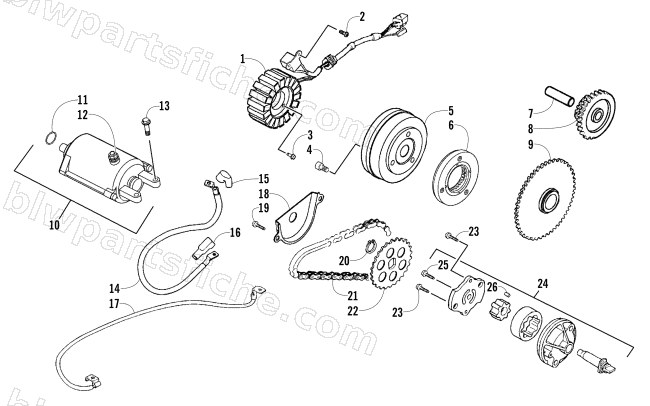

2012 Arctic Cat 300 DVX — STARTER MOTOR, MAGNETO, AND OIL PUMP ASSEMBLY
2012 300 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-627 | STATOR COMP | 1 | $203.95 | |
| 2 | 3304-118 | SCREW PAN 5*16 | 1 | $0.85 | |
| 3 | 3304-111 | R/B 3307-225 | 1 | $0.85 | |
| 4 | 3304-208 | BOLT SOCKET 8*15 | 1 | $1.78 | |
| 5 | 3305-628 | FLYWHEEL COMP | 1 | $163.95 | |
| 6 | 3305-412 | ONE WAY CLUTCH | 1 | $309.95 | |
| 7 | 3305-629 | SHAFT STARTER REDUCTION GEAR | 1 | $5.95 | |
| 8 | 3303-824 | GEAR STARTER REDUCTION | 1 | $37.95 | |
| 9 | 3305-411 | GEAR COMP STARTING CLUTCH | 1 | $82.95 | |
| 10 | 3304-274 | MOTOR UNIT STARTER | 1 | $298.95 | |
| 11 | 3304-104 | O-RING 24.4*3.1 | 1 | $1.95 | |
| 12 | 3304-011 | NUT WASH 6MM | 1 | $0.81 | |
| 13 | 3304-002 | BOLT FLANGE SHF 6*22 | 1 | $0.81 | |
| 14 | 3304-277 | CABLE STARTER MOTOR | 1 | $50.95 | |
| 15 | 3305-251 | BOOT,STARTING MOTOR TERMINAL | 1 | $3.57 | |
| 16 | 3305-252 | BOOT,STARTER SOLENOID | 1 | $3.57 | |
| 17 | 3304-279 | CABLE EARTH | 1 | $30.95 | |
| 18 | 3303-697 | SEPARATER OIL | 1 | $5.37 | |
| 19 | 3303-381 | BOLT FLANGE SH 6*12 | 1 | $0.81 | |
| 20 | 3304-146 | CIR EXTERNAL 10MM | 1 | $0.95 | |
| 21 | 3305-631 | CHAIN OIL PUMP | 1 | $33.95 | |
| 22 | 3303-688 | SPRKT OIL PUMP DRIVE | 1 | $17.87 | |
| 23 | 3303-385 | BOLT FLANGE SH 6*28 | 1 | $0.81 | |
| 24 | 3303-687 | PUMP ASSY OIL | 1 | $54.95 | |
| 25 | 3304-426 | SCREW PAN 3*10 | 1 | $0.81 | |
| 26 | 3304-144 | PIN DOWEL 4*6.5 | 1 | $1.37 |
