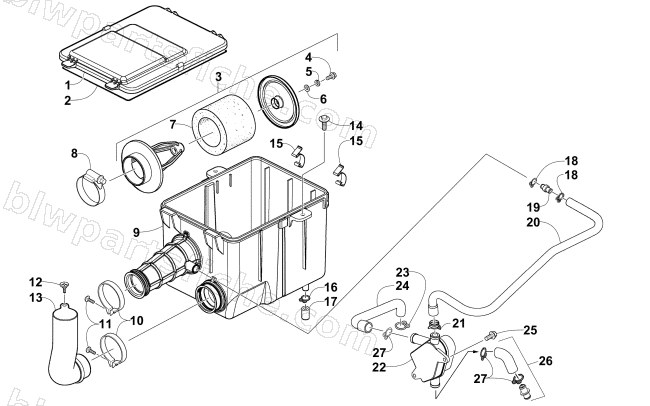

AIR INTAKE ASSEMBLY
2012 300 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-705 | COVER AIR/C | 1 | $20.63 | |
| 2 | 3303-703 | SEAL AIR/C COVER | 1 | $10.97 | |
| 3 | 3303-704 | ELEMENT COMP AIR/C | 1 | $47.95 | |
| 8 | 3304-416 | BAND CONNECTING TUBE | 1 | $12.35 | |
| 9 | 3305-790 | CASE ASSY AIR/C | 1 | $79.95 | |
| 10 | 3303-709 | BAND CONNECT TUBE | 1 | $4.95 | |
| 11 | 3304-117 | R/B 3307-221 | 1 | $0.65 | |
| 12 | 3304-062 | CLIP BODY COVER | 1 | $1.50 | |
| 13 | 3303-710 | DUCT A AIR/C CASE | 1 | $20.63 | |
| 14 | 3304-652 | BOLT WASHER 6*12 | 1 | $1.09 | |
| 15 | 3303-708 | CLAMP AIR/C | 1 | $6.75 | |
| 16 | 3304-433 | CLIP B14.5 TUBE | 1 | $1.37 | |
| 17 | 3305-424 | TUBE DRAIN | 1 | $4.95 | |
| 18 | 3303-716 | CLIP BREATHER TUBE | 1 | $1.64 | |
| 19 | 3303-711 | JOINT BLOW BY | 1 | $3.44 | |
| 20 | 3303-734 | TUBE B OIL CATCH | 1 | $16.49 | |
| 21 | 3304-167 | CLAMP D18 TUBE | 1 | $3.57 | |
| 22 | 3303-706 | OIL CATCH ASSY | 1 | $12.35 | |
| 23 | 3303-714 | CLIP BREATHER TUBE | 1 | $2.33 | |
| 24 | 3303-733 | TUBE A OIL CATCH | 1 | $5.37 | |
| 25 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 26 | 3303-735 | TUBE C OIL CATCH | 1 | $4.13 | |
| 27 | 3303-712 | CLIP BREATHER TUBE | 1 | $2.33 |
