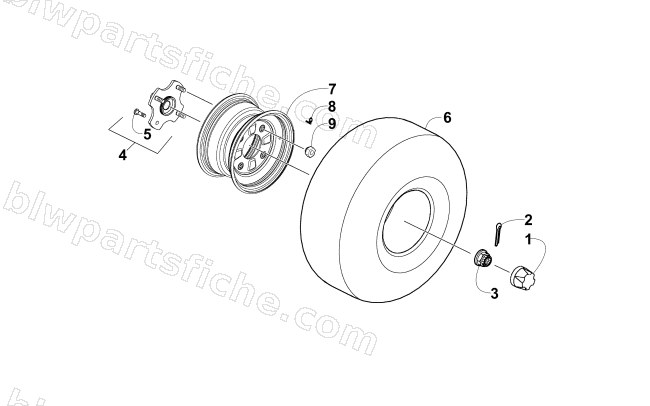

2012 Arctic Cat 150 UTILITY — REAR WHEEL ASSEMBLY
2012 150 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-931 | CAP WHEEL | 1 | $10.97 | |
| 2 | 3303-340 | PIN SPLIT 3*30 | 1 | $1.37 | |
| 3 | 3304-129 | NUT FLANGE CASTLE 16MM | 1 | $12.35 | |
| 4 | 3304-296 | CONNECTOR RR WHEEL | 1 | $90.95 | |
| 5 | 3304-014 | BOLT CONNECTOR | 1 | $3.02 | |
| 6 | 3303-885 | TIRE ASSY RR/KENDA AT22 10-10 4P TL | 1 | $180.95 | |
| 7 | 3303-883 | RIM COMP RR WHEEL (DARK GRAY) | 1 | $144.95 | |
| 8 | 3304-562 | VALVE RIM (TR412) | 1 | $12.35 | |
| 9 | 3304-028 | NUT WHEEL | 1 | $2.61 |
