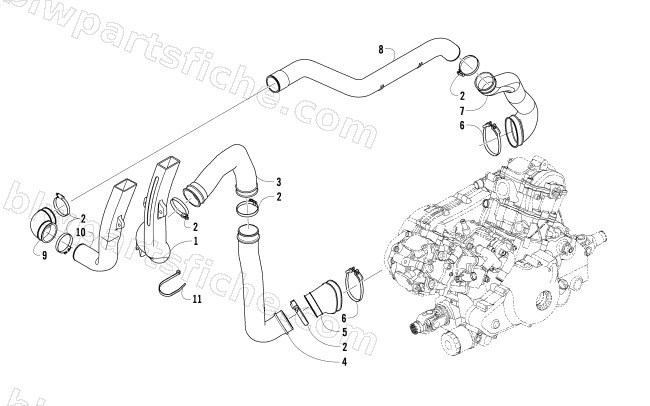

2012 Arctic Cat 1000 MUD PRO LTD — CASE/BELT COOLING ASSEMBLY
2012 1000 MUD PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-228 | DUCT,CLUTCH IN | 1 | $156.95 | |
| 2 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 3 | 0413-092 | BOOT,AIR IN-BELT COOLING | 1 | $58.95 | |
| 4 | 0413-250 | DUCT,AIR IN CLUTCH | 1 | $54.95 | |
| 5 | 0413-055 | BOOT,BELT COOLING (500B) | 1 | $45.95 | |
| 6 | 0423-057 | CLAMP,HOSE-WORM (NORMA 70-90X9mm) | 1 | $4.40 | |
| 7 | 0413-314 | BOOT,BELT-OUT | 1 | $82.95 | |
| 8 | 0413-213 | DUCT,CLUTCH-OUT-#1 | 1 | $79.95 | |
| 9 | 0413-098 | BOOT,AIR DUCT | 1 | $16.49 | |
| 10 | 0413-215 | DUCT,CLUTCH-OUT-#2 | 1 | $114.95 | |
| 11 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 11 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 |
