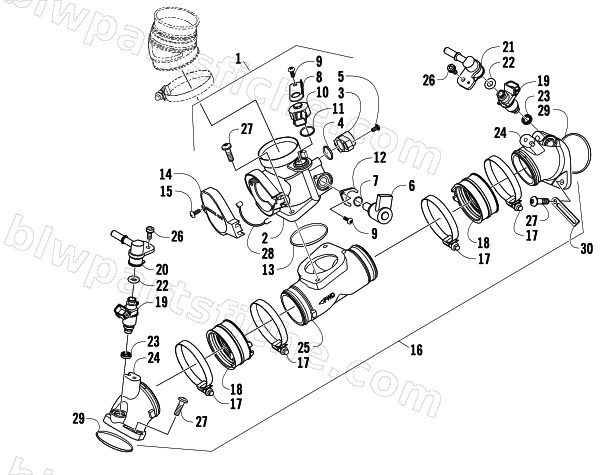

THROTTLE BODY ASSEMBLY
2012 1000 GT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-686 | THROTTLE BODY,H2 | 1 | $743.95 | |
| 3 | 0430-072 | SENSOR,THROTTLE POSITION | 1 | $144.95 | |
| 4 | 5507-234 | O-RING,TPS | 1 | $1.37 | |
| 5 | 5507-231 | SCREW,TPS | 1 | $1.78 | |
| 6 | 0430-074 | VALVE,ISC | 1 | $252.95 | |
| 7 | 5507-233 | O-RING,ISC | 1 | $3.44 | |
| 8 | 5507-227 | BRACKET,MAP SENSOR | 1 | $13.73 | |
| 9 | 5507-117 | SCREW | 1 | $1.23 | |
| 10 | 0430-073 | SENSOR,MAP | 1 | $150.95 | |
| 11 | 5507-232 | O-RING,MAP SENSOR | 1 | $1.78 | |
| 12 | 5507-229 | PLATE,ISC | 1 | $2.88 | |
| 13 | 5507-235 | O-RING,BASE-THROTTLE BODY | 1 | $16.49 | |
| 14 | 5507-223 | COVER,THROTTLE HOUSING-EFI | 1 | $26.95 | |
| 15 | 5507-037 | SCREW(TOP COVER) | 1 | $0.95 | |
| 16 | 0570-230 | MANIFOLD,INTAKE-ASSEMBLY | 1 | $793.95 | |
| 17 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 18 | 0470-660 | BOOT,INTAKE MANIFOLD | 1 | $16.49 | |
| 19 | 0470-688 | INJECTOR,FUEL | 1 | $74.95 | |
| 20 | 0470-763 | RAIL,FUEL-H2 | 1 | $33.95 | |
| 21 | 0470-764 | RAIL,FUEL-H2 | 1 | $33.95 | |
| 22 | 0470-767 | O-RING,FUEL INJECTOR | 1 | $3.44 | |
| 23 | 0470-768 | SEAL-RING,FUEL INJECTOR | 1 | $6.20 | |
| 24 | 0570-140 | MANIFOLD,INTAKE-MACH | 1 | $156.95 | |
| 25 | 0570-156 | PLENUM,INTAKE-MACH | 1 | $122.95 | |
| 26 | 0423-371 | SCREW,MACH-TXSPH-M5X12 SEMS | 1 | $1.37 | |
| 27 | 0826-008 | SCREW, MACH-TSPH M6 X 1 X 20W/THREADLOC | 1 | $1.50 | |
| 28 | 0487-046 | CABLE,THROTTLE | 1 | $69.95 | |
| 29 | 0830-090 | O-RING, INTAKE MANIFOLD | 1 | $1.09 | |
| 30 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
