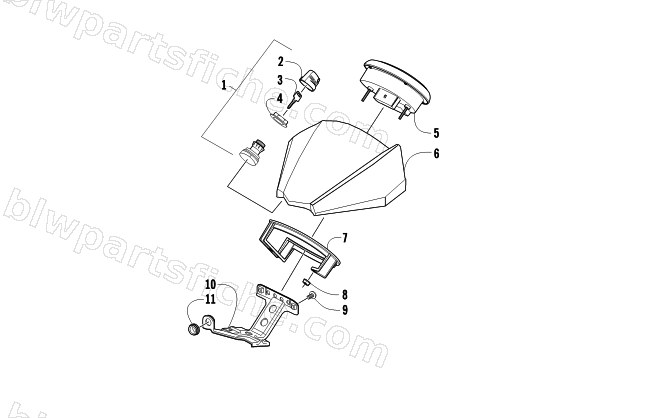

2011 Arctic Cat XC 450 EFI — INSTRUMENT POD ASSEMBLY
2011 XC 450 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-439 | SWITCH,IGNITION-OFF/ON/LIGHTS | 1 | $64.95 | |
| 2 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 3 | 3409-007 | KEY, BLANK (C SERIES) | 1 | $30.95 | |
| 4 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 5 | 0520-114 | GAUGE,LCD-CAN (011 450S SP) | 1 | $525.95 | |
| 6 | 3306-554 | COVER,HANDLEBAR (BLACK) | 1 | $20.63 | |
| 6 | 3306-553 | COVER,HANDLEBAR (LIME) | 1 | $20.63 | |
| 7 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 8 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 9 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 10 | 3306-538 | STAY HANDLE COVER | 1 | $13.73 | |
| 11 | 3303-239 | RUBBER TAIL LIGHT | 1 | $1.64 |
