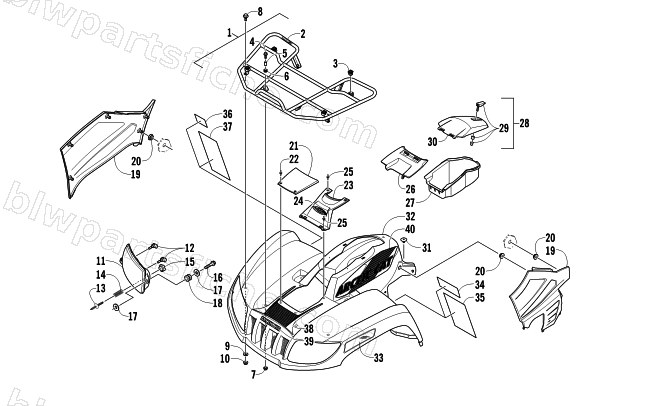

2011 Arctic Cat TRV 700s H1 EFI — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2011 TRV 700s H1 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-106 | RACK,FRONT W/FENCE-ASSEMBLY | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 11 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 11 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 12 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 13 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 14 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 15 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 16 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 19 | 2406-324 | PANEL,SIDE-RH (500/650 TRV) | 1 | $66.95 | |
| 19 | 2406-421 | PANEL,SIDE-LH (650H1 TRV) | 1 | $90.95 | |
| 20 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 21 | 1406-358 | RADIATOR-ACCESS | 1 | $16.49 | |
| 22 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 23 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 24 | 2411-330 | DECAL,POWER STEERING | 1 | $13.73 | |
| 25 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 26 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 27 | 1406-573 | BOX,STORAGE | 1 | $26.95 | |
| 28 | 2506-234 | LID,STORAGE BOX-W/LATCH | 1 | $32.95 | |
| 29 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 30 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 | |
| 31 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 32 | 4506-270 | FENDER,FRONT A.M.GREEN-ASSY | 1 | $1,223.95 | |
| 33 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 33 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 34 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 35 | 2411-259 | DECAL,WARNING-TRV GENERAL 16 | 1 | $16.49 | |
| 36 | 0411-894 | DECAL,WARNING HILL (TRV) | 1 | $4.95 | |
| 37 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 38 | 2411-350 | DECAL,CREST (A. GRN METALLIC) | 1 | $24.77 | |
| 39 | 2411-260 | DECAL,FRONT-ARCTIC CAT (TRV/CRSR) | 1 | $33.95 | |
| 40 | 2411-284 | DECAL,SIDE-ARCTIC CAT-RH (TRV/CRSR | 1 | $42.95 | |
| 40 | 2411-285 | DECAL,SIDE-ARCTIC CAT-LH (TRV/CRSR | 1 | $42.95 |
