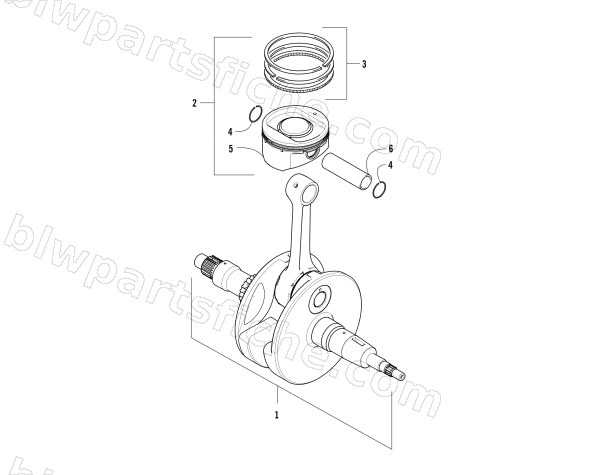

CRANKSHAFT AND PISTON ASSEMBLY

2011 TRV 700

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	0805-326	CRANKSHAFT,FINAL-ASSEMBLY-85-(N1 GREEN)	1	$1,085.95
2	0805-297	PISTON,102MM,SET ASSY	1	$268.95
3	0805-132	RING SET,PISTON-A700	1	$197.95
4	0831-001	CIRCLIP, PISTON PIN	1	$17.95
6	0805-210	PIN,PISTON, OD23 X L54	1	$105.95
