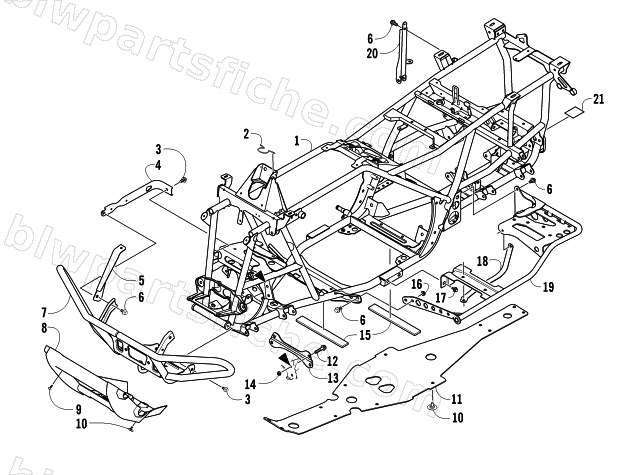

2011 Arctic Cat TRV 550s H1 EFI CRUISER — FRAME AND RELATED PARTS
2011 TRV 550s H1 EFI CRUISER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-847 | R/B 8506-245 | 1 | $1,534.95 | |
| 2 | 2416-401 | CLIP,WIRE HARNESS | 1 | $3.44 | |
| 3 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 4 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 5 | 1506-562 | BRACKET,BUMPER-RH-BLACK | 1 | $30.95 | |
| 5 | 1506-563 | BRACKET,BUMPER-LH-BLACK | 1 | $30.95 | |
| 6 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 1506-855 | BUMPER,FRONT-BLACK (A-BODY) | 1 | $208.95 | |
| 8 | 1406-360 | FASCIA,BUMPER-FRONT (BLACK) | 1 | $54.95 | |
| 9 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 10 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 11 | 2406-091 | PANEL,BELLY | 1 | $187.95 | |
| 12 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 13 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 14 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 15 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 16 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 17 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 18 | 2406-216 | STRAP,FOOTREST SUPPORT-RH | 1 | $20.63 | |
| 18 | 2406-217 | STRAP,FOOTREST SUPPORT-LH | 1 | $20.63 | |
| 19 | 1506-848 | FOOTREST,RH-WELDMENT | 1 | $156.95 | |
| 19 | 1506-849 | FOOTREST,LH-WELDMENT | 1 | $156.95 | |
| 20 | 2506-447 | BRACKET,FUEL TANK-BLACK | 1 | $25.95 | |
| 21 | 1411-077 | R/B 4411-550 | 1 | $3.95 |
