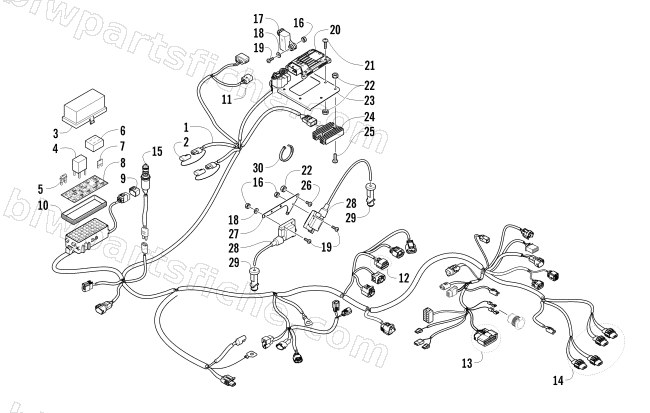

2011 Arctic Cat TRV 1000s CRUISER — WIRING HARNESS ASSEMBLY
2011 TRV 1000s CRUISER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-380 | HARNESS/DIA,MAIN (011 H2 CRSR PS) | 1 | $668.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 4 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 4 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 2411-464 | DECAL,PDM (011 1000 H2 CRSR PS) | 1 | $50.95 | |
| 9 | 0430-097 | COVER,DIAGNOSTIC CONNECTOR | 1 | $56.95 | |
| 10 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 11 | 1436-416 | KIT,TILT SENSOR CONNECTOR REPAIR | 1 | $26.95 | |
| 12 | 0437-071 | REPAIR,KIT-ISC | 1 | $42.95 | |
| 13 | 1436-415 | KIT,LCD GAUGE CONNECTOR REPAIR | 1 | $90.95 | |
| 14 | 1436-289 | KIT,HL CONNECTOR REPAIR (A BODY) | 1 | $26.95 | |
| 15 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 16 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 17 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 18 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 19 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 20 | 0530-063 | ECU,EFI-PROGRAMMED (2011 H2 TRV) | 1 | $687.95 | |
| 21 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 22 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 23 | 2416-175 | BRACKET,ECU-SYN | 1 | $16.49 | |
| 24 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 25 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 26 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 27 | 2416-268 | BRACKET,COIL | 1 | $10.97 | |
| 28 | 0824-057 | COIL,IGNITION-(W/O CAP) | 1 | $260.95 | |
| 29 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 30 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
