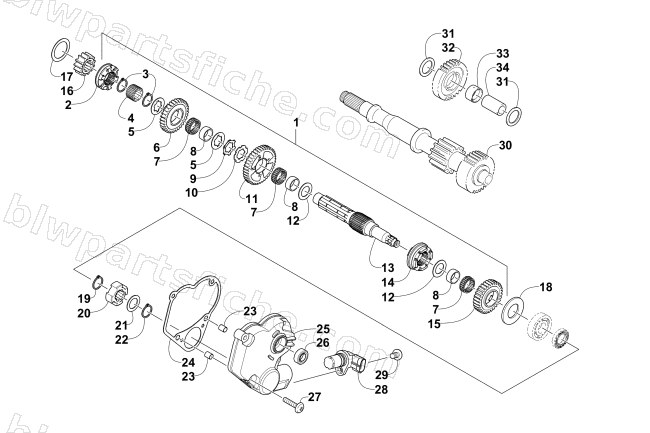

2011 Arctic Cat TRV 1000s CRUISER — SECONDARY TRANSMISSION ASSEMBLY (UP TO ENGINE SERIAL NO. 40010069)
2011 TRV 1000s CRUISER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0822-091 | COUNTERSHAFT ASSY (NFG) | 1 | $1,264.95 | |
| 2 | 0822-014 | DOG, REVERSE GEAR | 1 | $169.95 | |
| 3 | 0831-011 | RING, EXTERNAL RETAINING - DSH-25 | 1 | $3.44 | |
| 4 | 0822-045 | INSERT,GEAR | 1 | $100.95 | |
| 5 | 0828-008 | WASHER, SECONDARY TRANSMISSION | 1 | $19.25 | |
| 6 | 0822-013 | GEAR, REVERSE DRIVEN | 1 | $187.95 | |
| 7 | 0832-011 | BEARING | 1 | $37.95 | |
| 8 | 0822-005 | BUSHING | 1 | $85.95 | |
| 9 | 0828-014 | WASHER, SECONDARY TRANSMISSION | 1 | $19.25 | |
| 10 | 0828-015 | WASHER, LOCK, SECONDARY TRANSMISSION | 1 | $33.95 | |
| 11 | 0822-004 | GEAR,DRIVEN-LOW (40T) | 1 | $187.95 | |
| 12 | 0822-046 | SHIM,DRIVE GEAR SPACER | 1 | $20.63 | |
| 13 | 0822-003 | COUNTERSHAFT | 1 | $331.95 | |
| 14 | 0822-007 | GEAR, DOG SLIDING | 1 | $180.95 | |
| 15 | 0822-006 | GEAR,DRIVEN-HIGH (30T) | 1 | $188.95 | |
| 16 | 0822-089 | GEAR,SPUR-DRIVE-NO.2 (13T CUT) | 1 | $112.95 | |
| 17 | 0828-019 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $8.21 | |
| 18 | 0828-011 | WASHER, STEEL 20 x 40 x 1 | 1 | $6.75 | |
| 19 | 0831-040 | RING, EXTERNAL RETAINING - DSH-17 | 1 | $0.40 | |
| 20 | 0822-050 | TRIGGER, SPEEDO SENSOR | 1 | $16.49 | |
| 21 | 0828-069 | WASHER, THRUST | 1 | $1.37 | |
| 22 | 0831-039 | RING,EXTERNAL RETAINING - DSH-13 | 1 | $0.26 | |
| 23 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 24 | 0830-194 | GASKET,SHIFT-SPEEDO | 1 | $4.54 | |
| 25 | 0806-105 | COVER,SHIFT-SPEEDO | 1 | $71.95 | |
| 26 | 0830-044 | SEAL, SUB-GEAR SHIFT | 1 | $4.54 | |
| 27 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 28 | 0430-091 | SENSOR,SPEEDO- MX | 1 | $49.95 | |
| 29 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 30 | 0822-001 | DRIVESHAFT | 1 | $324.95 | |
| 31 | 0828-016 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $5.51 | |
| 32 | 0822-011 | GEAR, REVERSE IDLE | 1 | $84.95 | |
| 33 | 0822-012 | BUSHING, REVERSE IDLE GEAR | 1 | $30.95 | |
| 34 | 0822-015 | SHAFT, REVERSE IDLE | 1 | $30.95 |
