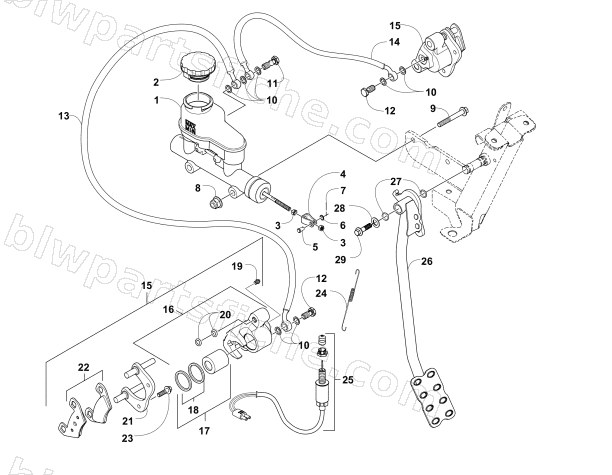

FRONT BRAKE ASSEMBLY
2011 PROWLER 700s XTX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2502-043 | CYLINDER,MASTER BRAKE SIDEWINDER II-ASSY | 1 | $235.95 | |
| 2 | 2502-044 | KIT,SERVICE CAP-TANDEM MC SIDEWINDER II | 1 | $53.95 | |
| 3 | 0402-592 | NUT, JAM,M8 X 1.25 | 1 | $0.95 | |
| 4 | 1402-520 | CLEVIS | 1 | $47.95 | |
| 5 | 1402-377 | PIN,CLEVIS-1/4X51/64 Z&Y | 1 | $10.97 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 8 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 9 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 10 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 11 | 0423-610 | BOLT,DOUBLE BANJO FITTING | 1 | $10.97 | |
| 12 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 13 | 1402-389 | HOSE,BRAKE-FRONT | 1 | $126.95 | |
| 14 | 1402-290 | HOSE, BRAKE-FRONT RH | 1 | $100.95 | |
| 15 | 1502-730 | KIT-CALIPER,FULL ASSY-RH | 1 | $390.95 | |
| 15 | 1502-731 | KIT-CALIPER,FULL ASSY-LH | 1 | $390.95 | |
| 16 | 1436-160 | KIT-HOUSING,PISTONS,SEALS,BLEADER-RH | 1 | $266.95 | |
| 16 | 1436-161 | KIT-HOUSING,PISTONS,SEALS,BLEADER-LH | 1 | $268.95 | |
| 17 | 0502-606 | SET,PISTONS/SEALS | 1 | $90.95 | |
| 19 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 20 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 21 | 0502-960 | KIT,BRACKET ASSEMBLY (9.95" DISC) | 1 | $131.95 | |
| 22 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 23 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 24 | 0502-785 | SPRING,BRAKE SWITCH | 1 | $5.78 | |
| 25 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 26 | 1502-692 | PEDAL,BRAKE-PTD BLACK | 1 | $58.95 | |
| 27 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 28 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 29 | 8408-822 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/204(RED | 1 | $1.50 |
