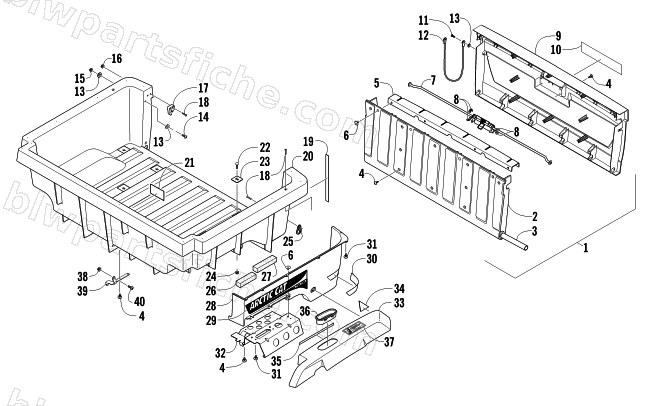

CARGO BOX AND TAILGATE ASSEMBLY
2011 PROWLER 700s XTX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-205 | TAILGATE ASSEMBLY - BLACK | 1 | $357.95 | |
| 2 | 2406-365 | PANEL,TAILGATE INNER | 1 | $140.95 | |
| 3 | 1406-927 | SHAFT,PIVOT-TAILGATE | 1 | $26.95 | |
| 4 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 5 | 1506-704 | BRACE,TAILGATE-BLACK | 1 | $58.95 | |
| 6 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 7 | 2506-056 | LATCH,TAILGATE-BLACK | 1 | $112.95 | |
| 8 | 1406-706 | BEARING,HANDLE | 1 | $2.06 | |
| 9 | 2406-369 | PANEL,TAILGATE OUTER BLACK | 1 | $180.95 | |
| 10 | 2411-419 | DECAL,GRAPHIC-TAILGATE AM GREEN | 1 | $66.95 | |
| 10 | 2411-437 | DECAL,GRAPHIC-TAILGATE N BLUE | 1 | $66.95 | |
| 10 | 2411-443 | DECAL,TAILGATE-CAMO | 1 | $66.95 | |
| 10 | 2411-425 | DECAL, TAILGATE-ARCTIC ICE | 1 | $66.95 | |
| 10 | 2411-431 | DECAL,GRAPHIC-TAILGATE COPPER | 1 | $66.95 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 0487-045 | CABLE,TAILGATE | 1 | $17.87 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 15 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 16 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 17 | 2506-664 | STRIKER,TAILGATE-RH-COATED | 1 | $17.87 | |
| 17 | 2506-665 | STRIKER,TAILGATE-LH-COATED | 1 | $17.87 | |
| 18 | 8474-630 | SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK | 1 | $1.23 | |
| 19 | 0417-006 | STRIP,FOAM .125 IN | 1 | $2.06 | |
| 20 | 2406-916 | BOX,REAR CARGO | 1 | $806.95 | |
| 21 | 1411-119 | DECAL,WARNING-CARGO (600#) | 1 | $16.49 | |
| 22 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 23 | 1506-933 | PLATE,RETAINING-BLACK (MATTE) | 1 | $12.35 | |
| 24 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 25 | 1506-539 | BRACKET,TAILGATE-BLACK | 1 | $20.63 | |
| 26 | 0417-011 | FOAM,CARGO BOX(1.625 X 2 X 6.5) | 1 | $5.78 | |
| 27 | 0417-010 | FOAM,CARGO BOX (1.75 X 2 X 8) | 1 | $6.89 | |
| 28 | 1406-762 | PANEL,BOX-RIGHT-BLACK | 1 | $58.95 | |
| 28 | 1406-761 | PANEL,BOX-LEFT-BLACK | 1 | $58.95 | |
| 29 | 2411-422 | DECAL, BOX SIDE-AM GREEN-RH | 1 | $17.87 | |
| 29 | 2411-423 | DECAL, BOX SIDE-AM GREEN-LH | 1 | $17.87 | |
| 29 | 2411-440 | DECAL, BOX SIDE-N BLUE-RH | 1 | $17.87 | |
| 29 | 2411-441 | DECAL, BOX SIDE-N BLUE-LH | 1 | $17.87 | |
| 29 | 2411-446 | DECAL, BOX-SIDE-CAMO-RH | 1 | $75.95 | |
| 29 | 2411-447 | DECAL, BOX-SIDE-CAMO-LH | 1 | $75.95 | |
| 29 | 2411-428 | DECAL, BOX SIDE-ARCTIC ICE-RH | 1 | $17.87 | |
| 29 | 2411-429 | DECAL, BOX SIDE-ARCTIC ICE-LH | 1 | $17.87 | |
| 29 | 2411-434 | DECAL, BOX SIDE-CAT COPPER-RH | 1 | $20.63 | |
| 29 | 2411-435 | DECAL, BOX SIDE-CAT COPPER-LH | 1 | $20.63 | |
| 30 | 1411-128 | REFLECTOR,RH-REAR | 1 | $13.73 | |
| 30 | 1411-129 | REFLECTOR,LH-REAR | 1 | $13.73 | |
| 31 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 32 | 1506-776 | BRACKET,FENDER SUPPORT-RH BLACK | 1 | $114.95 | |
| 32 | 2506-927 | BRACKET,FENDER SUPPORT-LH-BLACK | 1 | $108.95 | |
| 33 | 2516-188 | FENDER,RR UPPER-RH-A GREEN METALLIC-ASSY | 1 | $188.95 | |
| 33 | 2516-189 | FENDER,RR UPPER-LH-A GREEN METALLIC-ASSY | 1 | $188.95 | |
| 33 | 4506-064 | FENDER,REAR UPR RH-N.BLUE-ASSY | 1 | $188.95 | |
| 33 | 4506-065 | FENDER,REAR UPR LH-N.BLUE-ASSY | 1 | $188.95 | |
| 33 | 2516-430 | FENDER,REAR UPPER-RH (A. T. CAMO)-ASSY | 1 | $232.95 | |
| 33 | 2516-431 | FENDER,REAR UPPER-LH (A. T. CAMO)-ASSY | 1 | $387.95 | |
| 33 | 4506-062 | FENDER,REAR UPR RH-ARCTIC ICE-ASSY | 1 | $188.95 | |
| 33 | 4506-063 | FENDER,REAR UPR LH-ARCTIC ICE-ASSY | 1 | $188.95 | |
| 33 | 4506-192 | FENDER,REAR UPR RH-A.C.COPPER-ASSY | 1 | $188.95 | |
| 33 | 4506-193 | FENDER,REAR UPR LH-A.C.COPPER-ASSY | 1 | $188.95 | |
| 34 | 0417-008 | PAD,FOAM .125 IN | 1 | $1.23 | |
| 35 | 0417-007 | STRIP,FOAM .125 IN | 1 | $9.59 | |
| 36 | 2516-037 | RING,TRIM-FENDER | 1 | $5.92 | |
| 37 | 1411-120 | DECAL,WARNING-PINCH POINT | 1 | $4.95 | |
| 38 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 39 | 2516-178 | BRACKET,BOX LATCH SPRING-PAINTED | 1 | $20.63 | |
| 40 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 |
