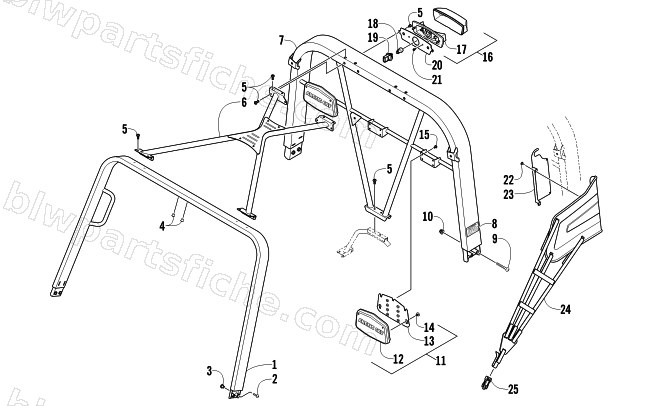

2011 Arctic Cat PROWLER 700 HDX — ROPS AND TAILLIGHT ASSEMBLY
2011 PROWLER 700 HDX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-108 | CANOPY TUBE,FRT-PTD | 1 | $1,115.95 | |
| 2 | 0423-886 | SCREW, MACH-TSTH M8-1.25X30 BLK- W/PATCH | 1 | $3.02 | |
| 3 | 0423-903 | NUT,T-M8X1.25-RIE BLK | 1 | $17.87 | |
| 4 | 0423-905 | PLUG,3/8"-BLACK | 1 | $1.09 | |
| 5 | 0423-910 | SCREW,TSH-M6-1.0X16-BLK W/PATCH LOCK | 1 | $1.09 | |
| 6 | 2516-304 | CANOPY SUPPORT-PTD | 1 | $1,018.95 | |
| 7 | 2516-601 | CANOPY TUBE,REAR-PTD-3PT | 1 | $1,517.95 | |
| 8 | 2411-522 | DECAL,WARNING-ROPS | 1 | $4.95 | |
| 9 | 0423-916 | SCREW,MACH-TXSTRH M8-1.25X65 BLK | 1 | $3.44 | |
| 10 | 8427-805 | NUT,HEX FLG-NYLOCK M8X1.25 CL8 RIE BLACK | 1 | $1.09 | |
| 11 | 4406-989 | PAD,HEADREST | 1 | $26.95 | |
| 12 | 1406-884 | R/B 4406-989 | 1 | $28.95 | |
| 13 | 1506-722 | HEADREST MOUNT-PAINTED-BLACK | 1 | $89.95 | |
| 14 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 15 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 16 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 17 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 18 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 19 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 20 | 2406-069 | BRACKET,TAILLIGHT MOUNT-BLACK | 1 | $20.63 | |
| 21 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 22 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 23 | 4506-150 | BRACKET,MOUNTING-SQ-RH-PTD BLACK | 1 | $20.63 | |
| 23 | 4506-151 | BRACKET,MOUNTING-SQ-LH-PTD BLACK | 1 | $20.63 | |
| 24 | 0517-138 | GUARD W/NET-RH-SQ TUBE | 1 | $108.95 | |
| 24 | 0517-139 | GUARD W/NET-LH-SQ TUBE | 1 | $108.95 | |
| 25 | 2416-793 | CLIP,SIDE NET | 1 | $5.78 |
