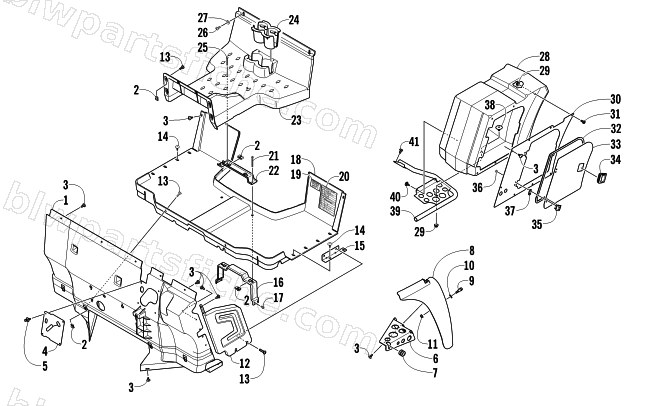

2011 Arctic Cat PROWLER 700 HDX — CONSOLE, FLOOR PANEL & STORAGE BOX ASSEMBLY
2011 PROWLER 700 HDX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-798 | PANEL,INNER FENDER-ROUTED (HDX) | 1 | $187.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 4 | 0405-407 | BOOT,STEERING-EPS (DIE CUT) | 1 | $3.71 | |
| 5 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 6 | 2506-066 | BRACKET,SUPPORT-RH-PTD BLK | 1 | $27.95 | |
| 6 | 2506-067 | BRACKET,SUPPORT-LH-PTD BLK | 1 | $27.95 | |
| 7 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 8 | 4506-054 | FENDER,FRONT RH-ARCTIC ICE-PTD | 1 | $150.95 | |
| 8 | 4506-055 | FENDER,FRONT LH-ARCTIC ICE-PTD | 1 | $150.95 | |
| 8 | 2516-426 | FENDER,FRONT-RIGHT (A. T. CAMO) | 1 | $262.95 | |
| 8 | 2516-427 | FENDER,FRONT-LEFT (A. T. CAMO) | 1 | $254.95 | |
| 9 | 0623-855 | SCREW, HEX,DOME HEAD SHOULDER-1/4-20X.50 | 1 | $13.73 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 12 | 2416-641 | PANEL,SIDE KICK | 1 | $42.95 | |
| 13 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 14 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 15 | 4506-260 | BRACKET,KICK PANEL-RH-PTD BLACK | 1 | $19.25 | |
| 15 | 4506-261 | BRACKET,KICK PANEL-LH-PTD BLACK | 1 | $19.25 | |
| 16 | 2516-313 | BRACKET,FLOOR SUPPORT-PAINTED | 1 | $42.95 | |
| 17 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 18 | 2416-085 | R/B 5406-460 | 1 | $539.95 | |
| 19 | 2411-233 | DECAL,"TREAD LIGHTLY" (HDX) | 1 | $3.30 | |
| 20 | 2411-232 | DECAL,WARNING-TCLOC (HDX) | 1 | $6.47 | |
| 21 | 8468-670 | SCREW,MACH-TSPNH M6X1.0X70 CL8.8 BLK | 1 | $3.02 | |
| 22 | 2416-483 | BRKT,SUB-FLOOR MOUNTING | 1 | $26.95 | |
| 23 | 2416-412 | FLOOR, SUB | 1 | $275.95 | |
| 24 | 2416-109 | GROMMET,CUPHOLDER | 1 | $37.95 | |
| 25 | 8468-655 | SCREW,MACH-TSPNH M6X1.0X55 CL8.8 BLK | 1 | $1.30 | |
| 26 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 27 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 28 | 4506-528 | BOX,SIDE STORAGE-RH-SERV ASSY | 1 | $371.95 | |
| 28 | 4506-527 | BOX,SIDE STORAGE-LH-SERV ASSY | 1 | $371.95 | |
| 29 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 30 | 2516-858 | PLATE,FACE-SIDE STORAGE-PTD BLK | 1 | $42.95 | |
| 31 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 32 | 2416-504 | SEAL,DOOR-SIDE STORAGE | 1 | $3.57 | |
| 33 | 2516-853 | DOOR,SIDE STORAGE-PTD BLACK | 1 | $42.95 | |
| 34 | 1423-035 | LATCH,SLIDE | 1 | $16.49 | |
| 35 | 1423-037 | HINGE,FRICTION | 1 | $23.39 | |
| 36 | 1623-928 | NUT,STAMPED-3/16" | 1 | $1.23 | |
| 37 | 1423-036 | SPACER, HINGE | 1 | $3.30 | |
| 38 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 39 | 2516-854 | SUPPORT-SIDE-STORAGE-RH PTD BLK | 1 | $54.95 | |
| 39 | 2516-855 | SUPPORT-SIDE-STORAGE-LH PTD BLK | 1 | $54.95 | |
| 40 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 41 | 8476-816 | SCREW,MACH-TSTRH M8X1.25X16 Z&Y | 1 | $3.85 |
