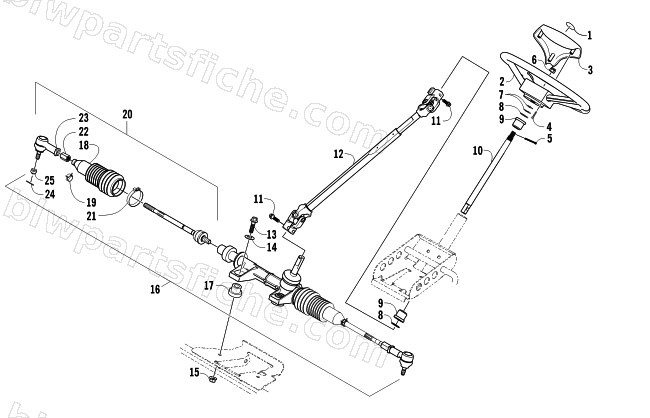

STEERING ASSEMBLY
2011 PROWLER 550 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1411-798 | DECAL,STEERING WHEEL | 1 | $10.97 | |
| 2 | 0502-884 | WHEEL,STEERING-ASSEMBLY | 1 | $174.95 | |
| 3 | 0405-239 | COVER,WHEEL | 1 | $30.95 | |
| 4 | 0423-613 | SCREW,SELF TAP-TSPNH#8-18X3/4 T-20 SS | 1 | $1.09 | |
| 5 | 1602-467 | CLIP,RETAINING-HAIRPIN | 1 | $6.06 | |
| 6 | 0423-884 | NUT,HEX-SLOTTED- M16 X 2 Z&C | 1 | $12.35 | |
| 7 | 0828-071 | WASHER,BELLEVILLE | 1 | $4.95 | |
| 8 | 0423-558 | WASHER(28X19X1) | 1 | $3.02 | |
| 9 | 0405-155 | BUSHING,STEERING | 1 | $10.97 | |
| 10 | 0405-321 | SHAFT,STEERING WHEEL | 1 | $66.95 | |
| 11 | 0423-655 | BOLT,PINCH(M10X1.5) | 1 | $2.06 | |
| 12 | 0405-156 | SHAFT, LOWER STEERING - ASSEMBLY | 1 | $283.95 | |
| 13 | 8409-050 | SCREW,CAP-HFH M10X1.25X50 CL10.9 Z&Y | 1 | $1.92 | |
| 14 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 15 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 16 | 0505-650 | KIT,STEERING ASSY-RACK AND PINION | 1 | $819.95 | |
| 17 | 0405-238 | BUSHING,MOUNTING | 1 | $87.95 | |
| 18 | 0405-216 | BOOT,RACK | 1 | $35.95 | |
| 19 | 0405-236 | CLAMP,TIE ROD END | 1 | $2.19 | |
| 20 | 0505-638 | TIE ROD KIT, INNER-W/ ROD END | 1 | $167.95 | |
| 21 | 0405-237 | CLAMP,BOOT | 1 | $3.71 | |
| 22 | 0505-640 | NUT,JAM-HEX, KIT- Z&Y (M12 X 1.5 X 56 L) | 1 | $9.59 | |
| 23 | 0505-743 | ROD END KIT-STEERING RACK | 1 | $47.95 | |
| 25 | 0423-072 | NUT,HEX CASTLE M10-1.25 | 1 | $2.61 |
