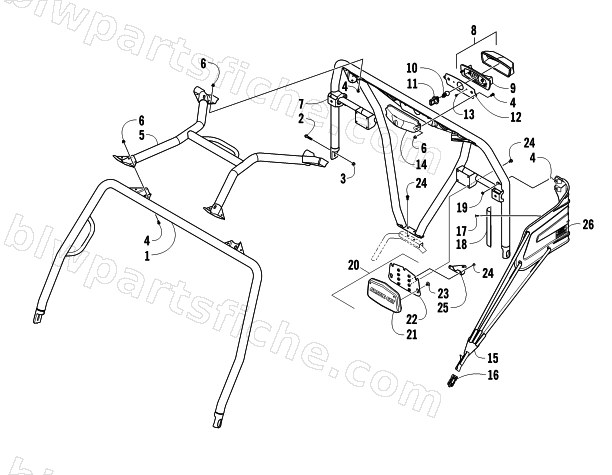

ROPS AND TAILLIGHT ASSEMBLY
2011 PROWLER 550 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-859 | HOOP,CANOPY-FRONT-PTD BLACK | 1 | $324.95 | |
| 2 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 3 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 4 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 5 | 4506-865 | TOP,CANOPY-PTD BLACK | 1 | $244.95 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 4506-861 | HOOP,CANOPY-REAR-PTD BLACK | 1 | $567.95 | |
| 8 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 9 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 10 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 11 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 12 | 2406-069 | BRACKET,TAILLIGHT MOUNT-BLACK | 1 | $20.63 | |
| 13 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 14 | 2516-893 | COVER,TAILLIGHT | 1 | $13.73 | |
| 15 | 0437-101 | KIT,ROUND TUBE SIDE RESTRAINT | 1 | $219.95 | |
| 16 | 2416-793 | CLIP,SIDE NET | 1 | $5.78 | |
| 17 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 18 | 4506-149 | BRACKET, MOUNTING - RND - PTD BLACK | 1 | $13.73 | |
| 19 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 20 | 4406-989 | PAD,HEADREST | 1 | $26.95 | |
| 21 | 1406-884 | R/B 4406-989 | 1 | $28.95 | |
| 22 | 1506-722 | HEADREST MOUNT-PAINTED-BLACK | 1 | $89.95 | |
| 23 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 24 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 25 | 4506-296 | BRACKET,FLAG MOUNTING-PTD BLACK | 1 | $17.87 | |
| 26 | 2411-522 | DECAL,WARNING-ROPS | 1 | $4.95 |
